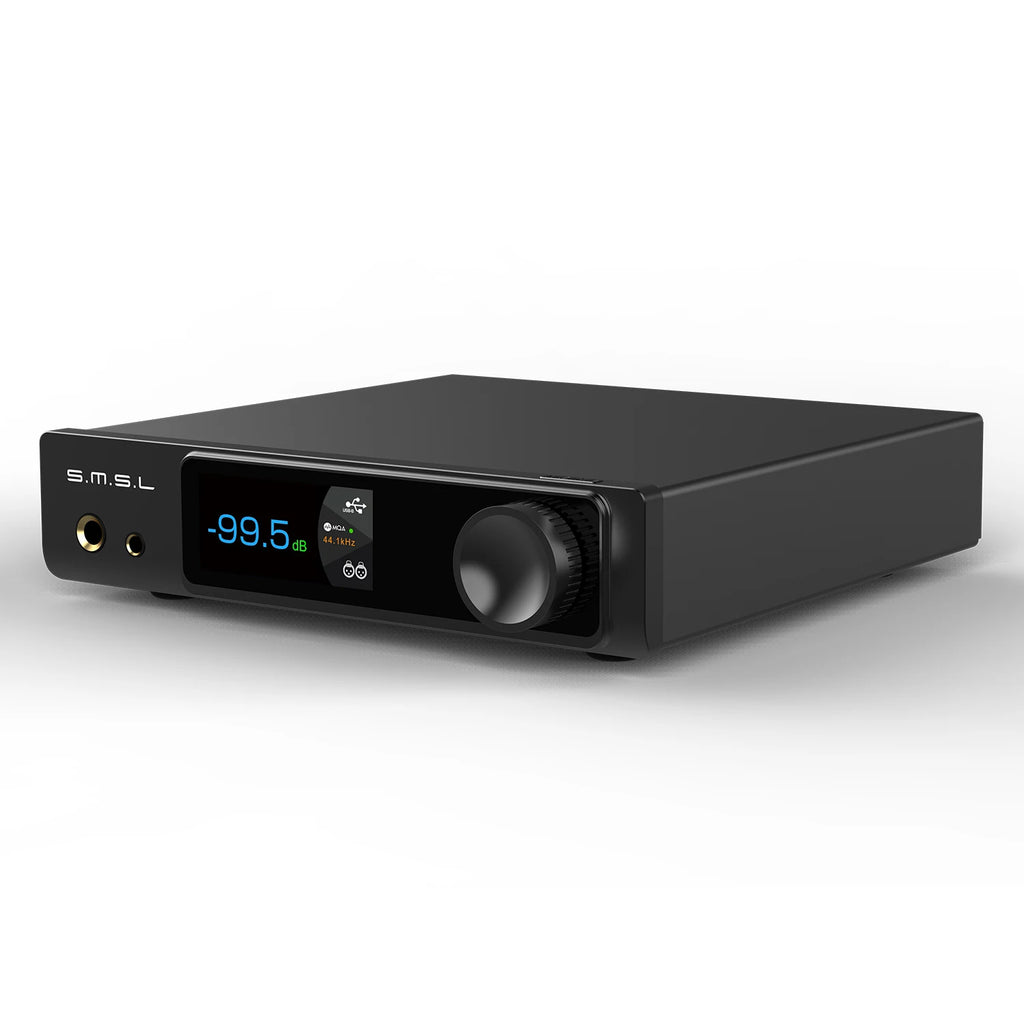

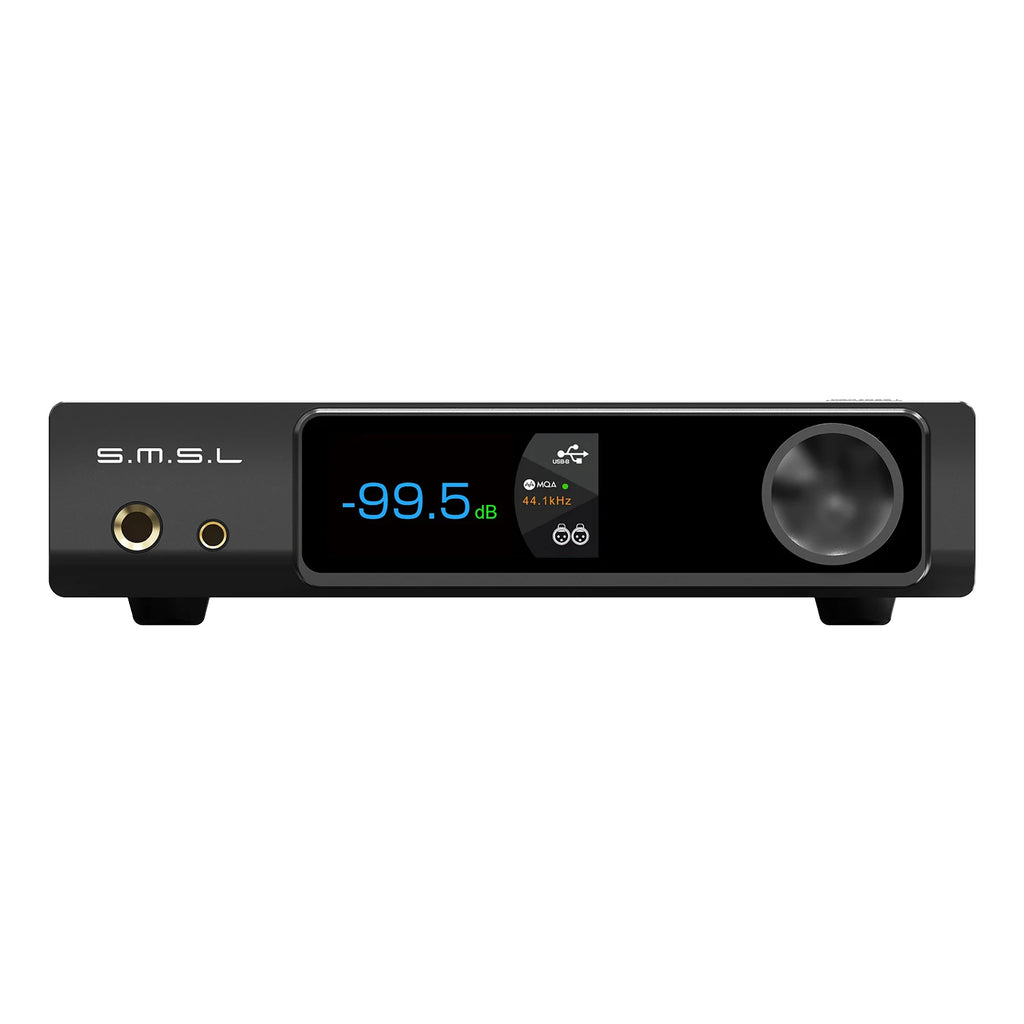

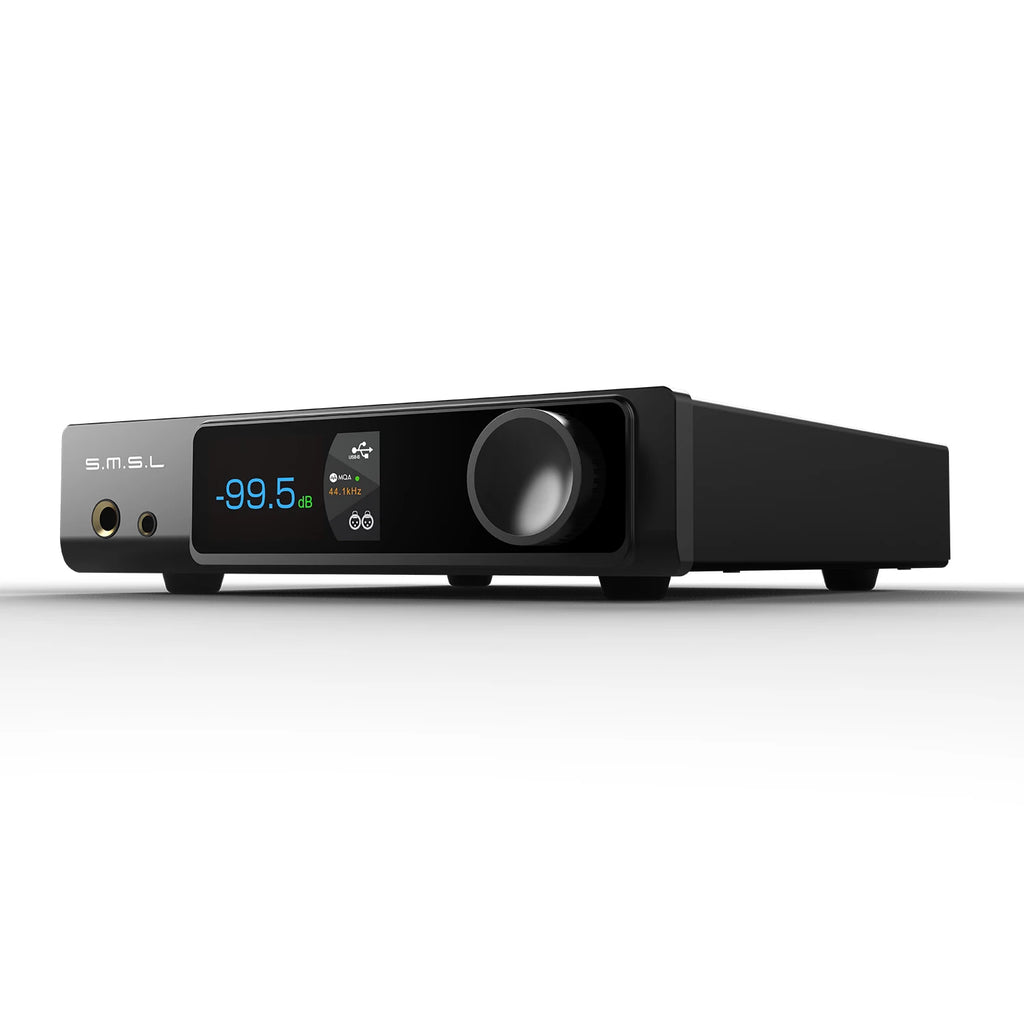

SMSL RAW-MDA1 Dual ES9039Q2M MQA

Pre-order SMSL RAW-MDA1 Bluetooth 5.1 Hi-Res Audio MQA Full Decoding Dual ESS ES9039Q2M DAC Support MQA & MQA-CD

Note:

-This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

-Pre-order Period: 1 week(excluding holidays and weekends).Please extend the processing time after purchase,thank you for your understanding!

-No cancellation of orders once ordered.

-All orders to be shipped out sequentially.

Latest-Generation Dual-DAC Chipset

The SMSL RAW-MDA1 is equipped with a high-end dual DAC arrangement, featuring two units of ESS Sabre’s latest ES9039Q2M DAC chips. These chips deliver class-leading audio signal decoding, ensuring true high-resolution audio processing with ultra-low distortion.

3rd-Gen XMOS USB Processor

The RAW-MDA1 incorporates a 3rd generation XMOS USB signal processor with an XMOS XU316 16-core processor. This advanced technology allows for smooth sound signal transmission and decoding, supporting PCM 32-Bit/768kHz and DSD512 audio signals. With USB1.1 and USB2.0 dual-mode connectivity, the device is compatible with most devices, including gaming consoles.

Certified For MQA and MQA-CD Decoding

Fully certified for MQA and MQA-CD decoding, the SMSL RAW-MDA1 ensures studio-level sound performance when paired with an MQA CD-Player. Enjoy the highest quality audio reproduction available with this certification.

Outstanding Performance with Specially-Developed Audio Clock Architecture

The RAW-MDA1 features a specially developed audio clock processing circuit, providing ultimate performance with ultra-low jitter issues in signal processing. This design ensures a pristine audio experience, maintaining the integrity of your sound.

High-Power Amplification Circuit and Connectivity Options

With a high-power output circuit housing six OPA1612A powerful amplification chips, the RAW-MDA1 ensures a strong output of up to 2.5W per channel through its 4.4mm balanced output. It includes 6.35mm single-ended and 4.4mm headphone output ports, along with line-out functionality via XLR and RCA output ports. Additionally, the device features high-definition Bluetooth connectivity with a Qualcomm chipset supporting Bluetooth V5.1 and high-resolution transmission protocols like LDAC, AptX HD, and AptX Adaptive for smooth wireless signal input.

Specs:

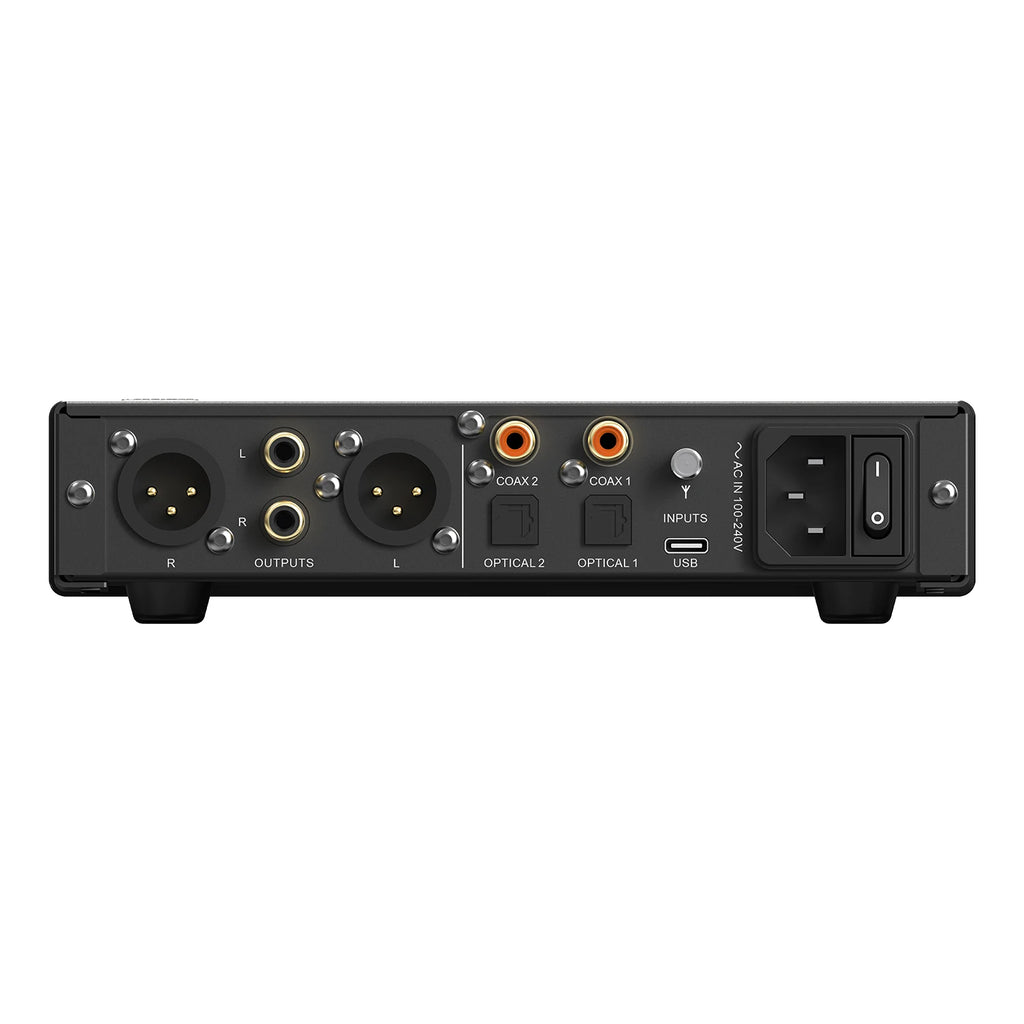

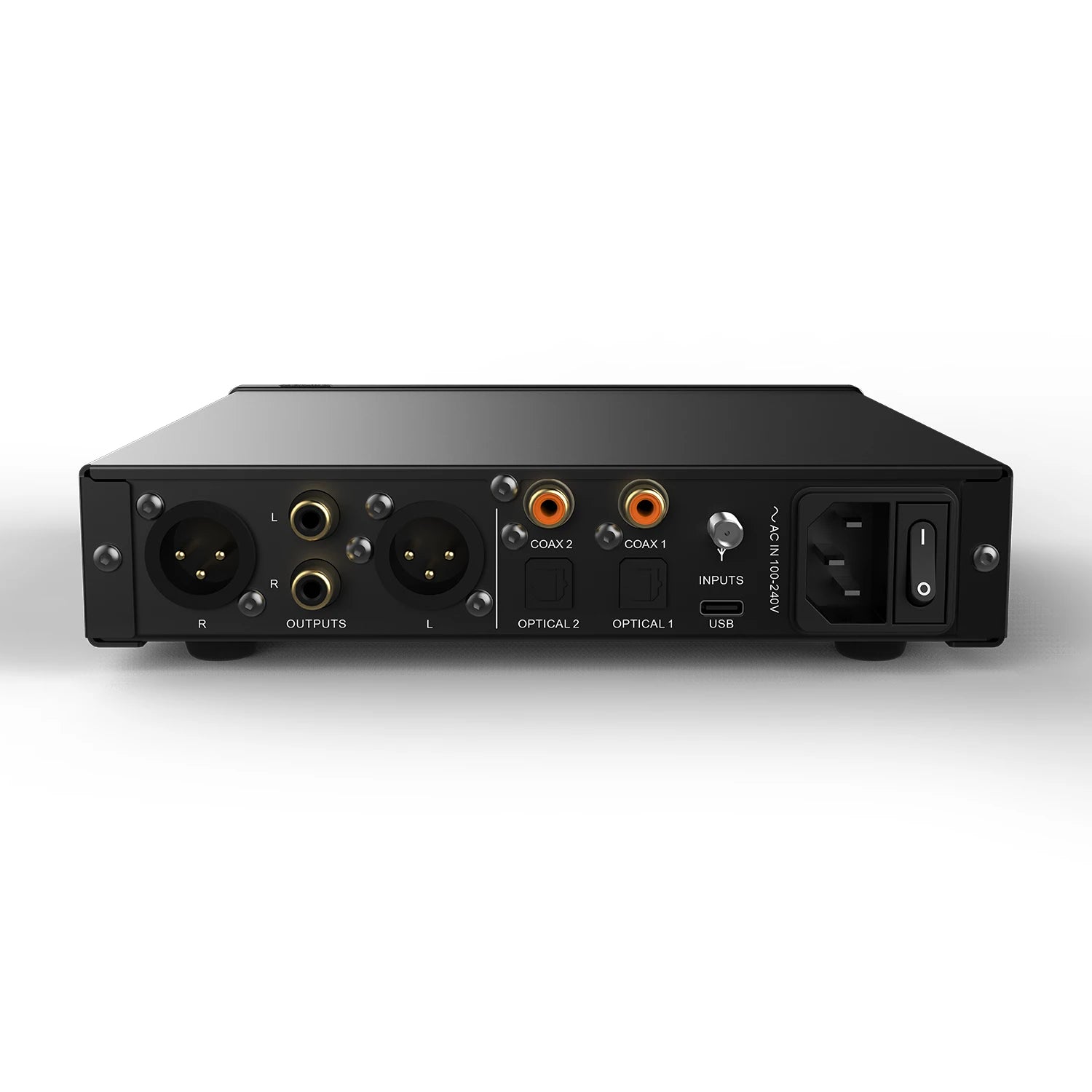

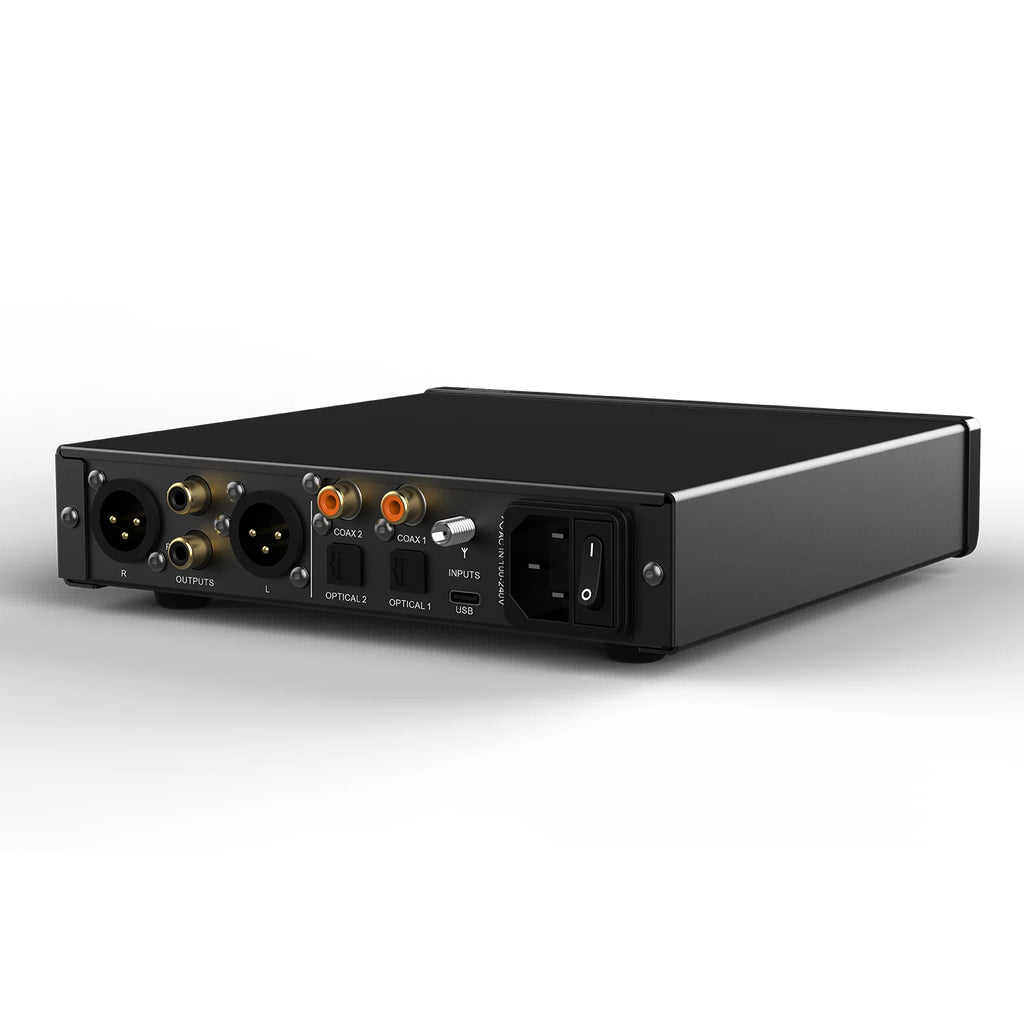

Input: USB/Optical x2/Coaxial x2/Bluetooth

Output: RCA/XLR/HEADPHONE

THD+N: 0.00005%(-124.5db non-Weighting)

Line output amplitude:

XLR 5.2Vrms

RCA 2.5Vrms

HP 8.2Vrms

Headphone output power:

16Ω 2.5Wx2

32Ω 1.7Wx2

Output lmpedance:

LINE OUT 100Ω

HP OUT Near 0Ω

Dynamic range:

XLR 132dB

RCA 127dB

HP 122dB

SNR:

XLR 132dB

RCA 127dB

HP 122dB

USB transmission: Asynchronization

USB compatibility:

Windows 7/8/8.1/10/11(Needs Driver)

Mac 0SX10.6 or Later、Linux(Driverless)

MQA decoder: USB/Optical/Coaxial

Bluetooth specification: 5.1(Support SBC,aptX,aptX HD,LDAC)

Power Consumption: ＜30W

Standby power: <0.5W

Size: 189x45x179mm(WxHxD)

Weight: 1.02kg/2.24lbs
