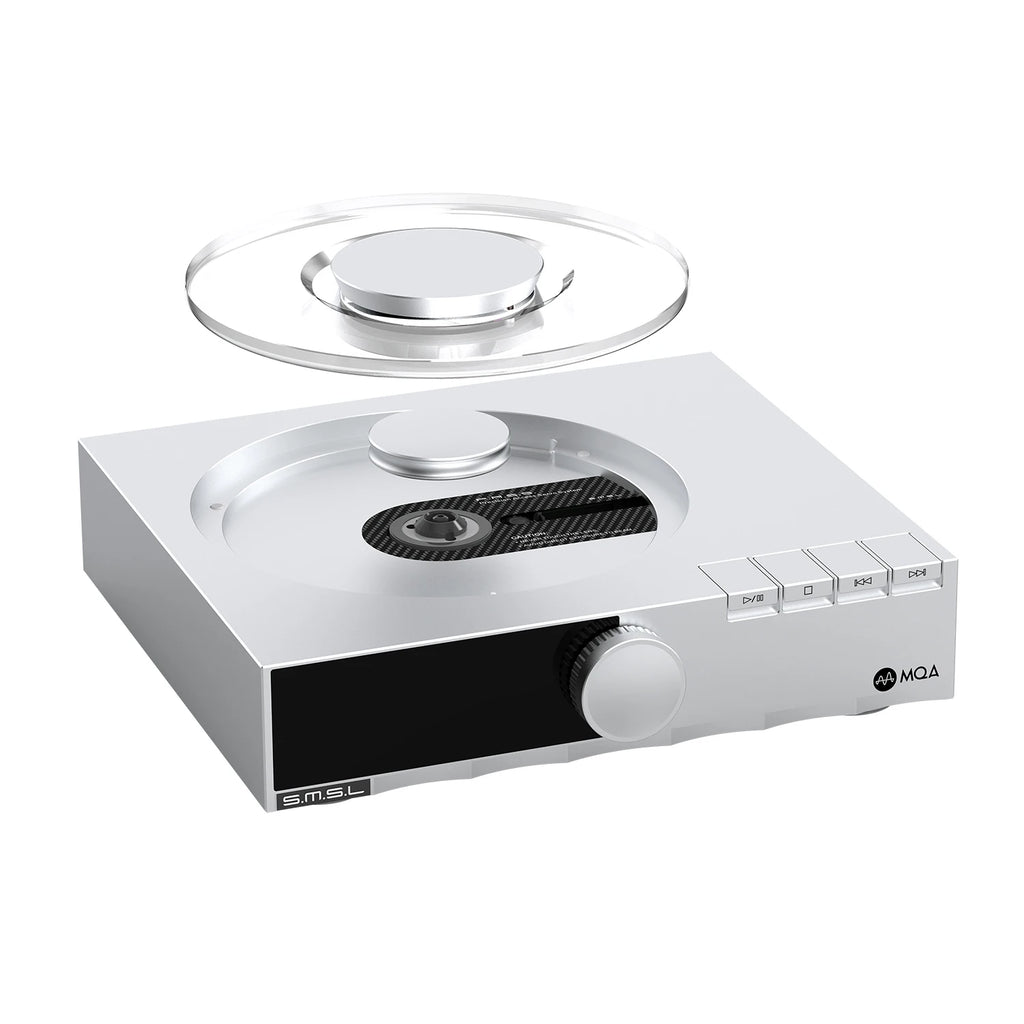

SMSL PL200T MQA-CD Player

Pre-order SMSL PL200T MQA-CD Player Reference Level Digital Interface Functions P.A.S.S Servo System HiFi Music Player

Note:

-This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

-Pre-order period: 2 week(excluding holidays and weekends),please extend the processing time after purchase,thank you for your understanding!

USB Input Support

Enjoy high-resolution audio with USB input supporting up to 32bit/768kHz and DSD512 for ultra-precise sound reproduction.

Clock Input & Output

Achieve perfect synchronization with 44.1kHz word clock and 10MHz atomic clock input/output, featuring impedance matching of 50 or 75Ω.

Self-Developed Precision Access Servo System

After two years of development, SMSL's servo system offers fast response, precise reading, and excellent anti-vibration performance, combined with a vibration damper for superior mechanical stability.

MQA Full Decoding Support

Experience high-fidelity sound with native support for MQA-CD, unlocking the full resolution of MQA-encoded tracks.

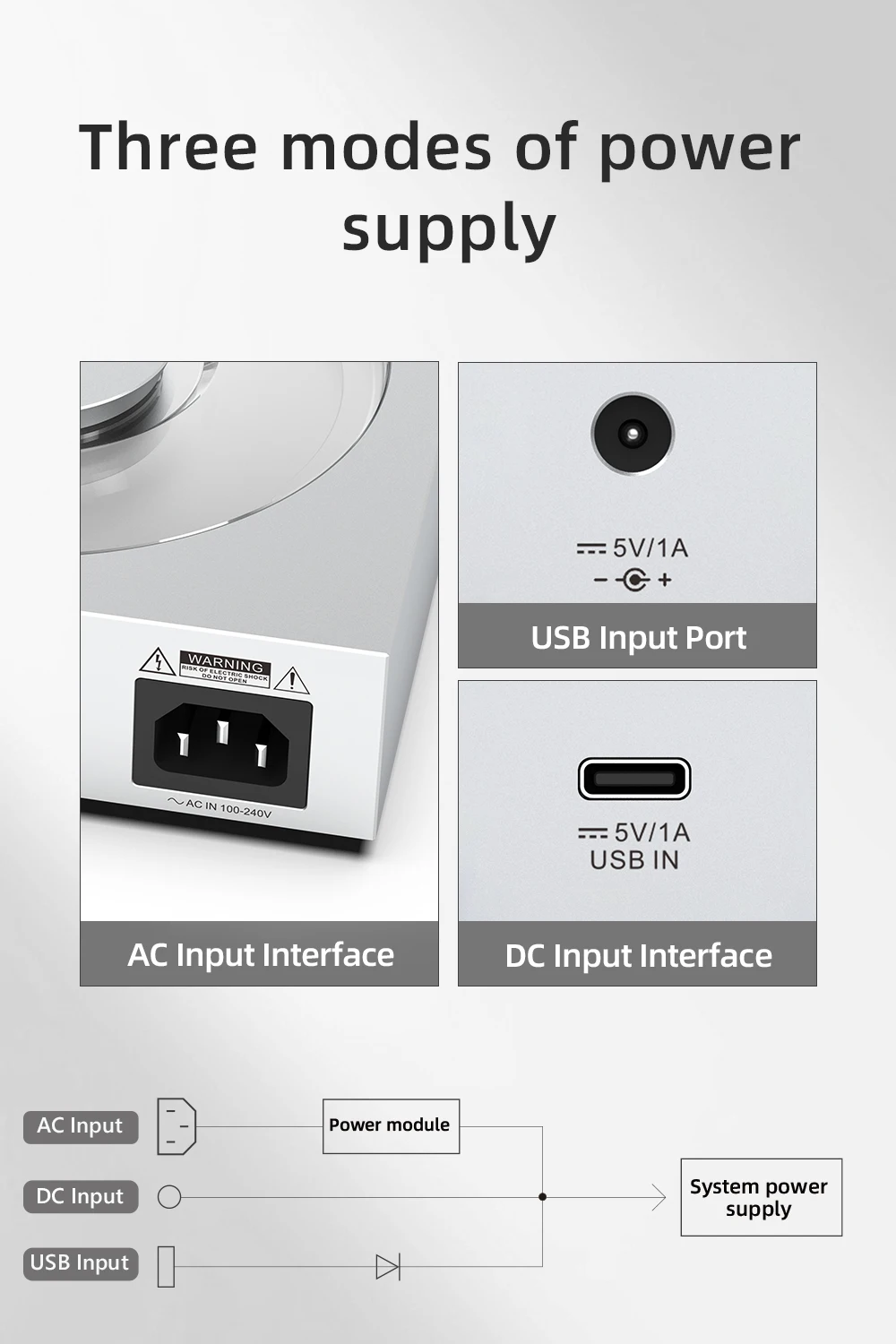

Multiple Power Supply Modes

Three modes of power supply to suit different audio environments.

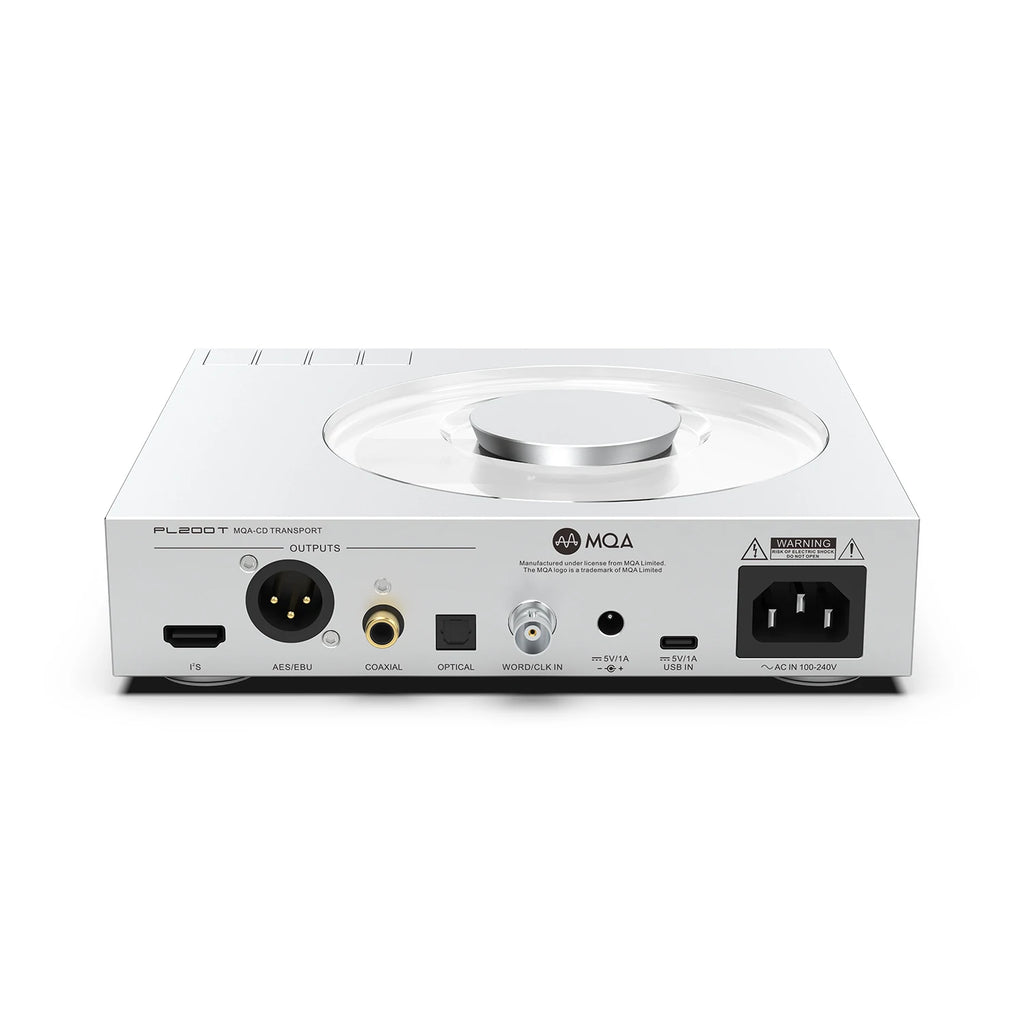

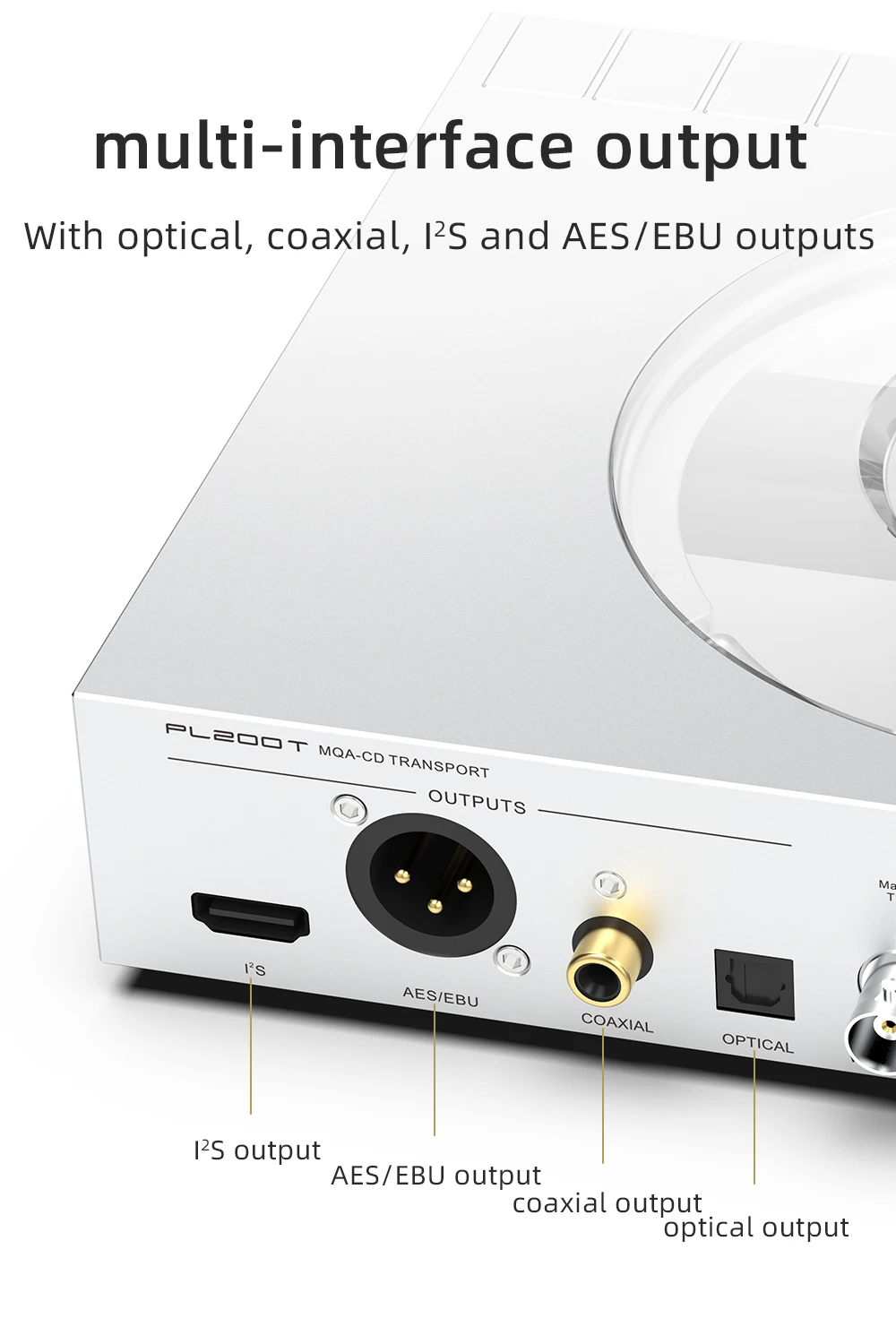

Multi-Interface Output Options

Includes optical, coaxial, I2S, and AES/EBU outputs for versatile connectivity.

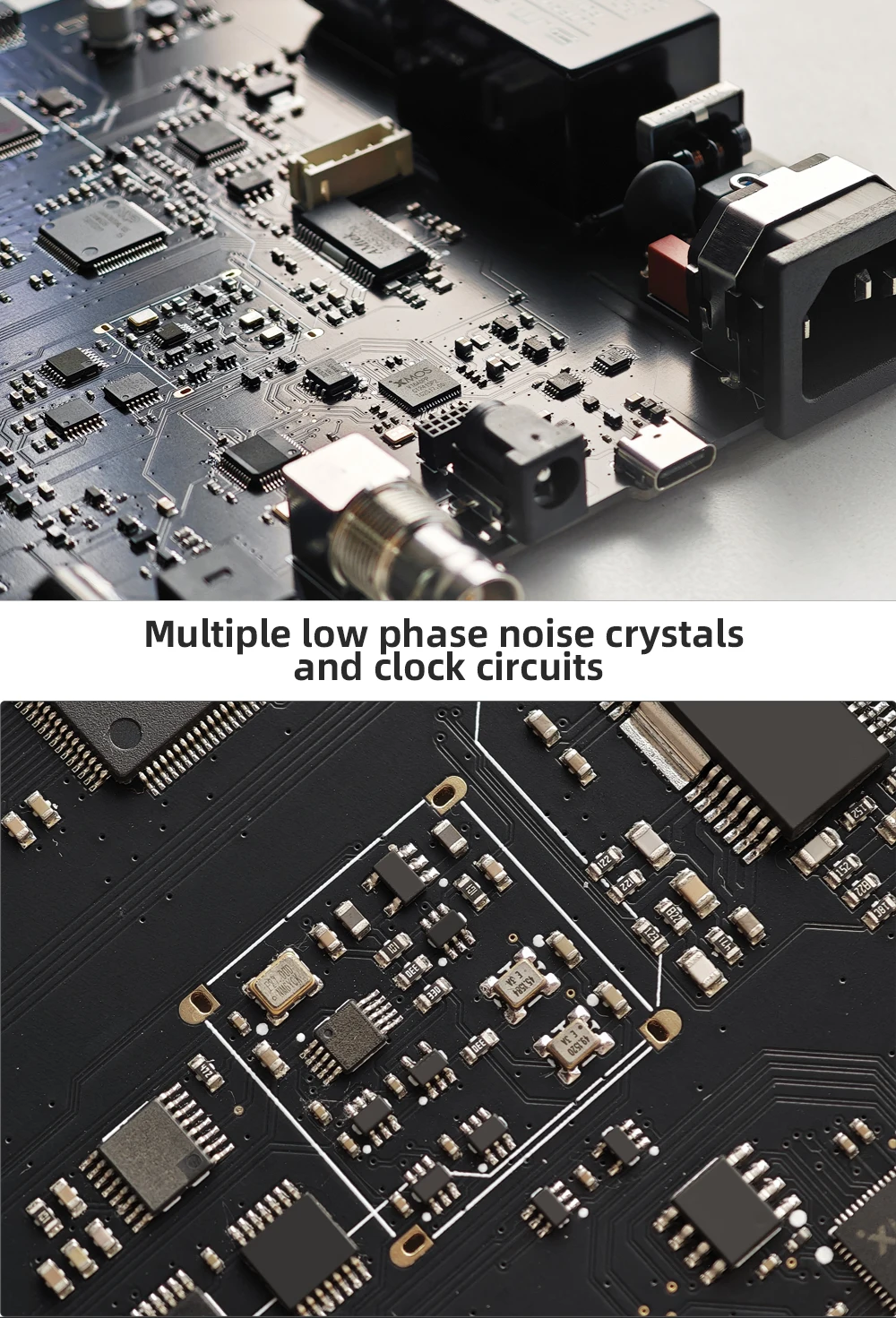

Low Phase Noise Crystals & Clock Circuits

Equipped with multiple low-phase noise crystals and precision clock circuits to ensure exceptional timing accuracy for digital audio playback.

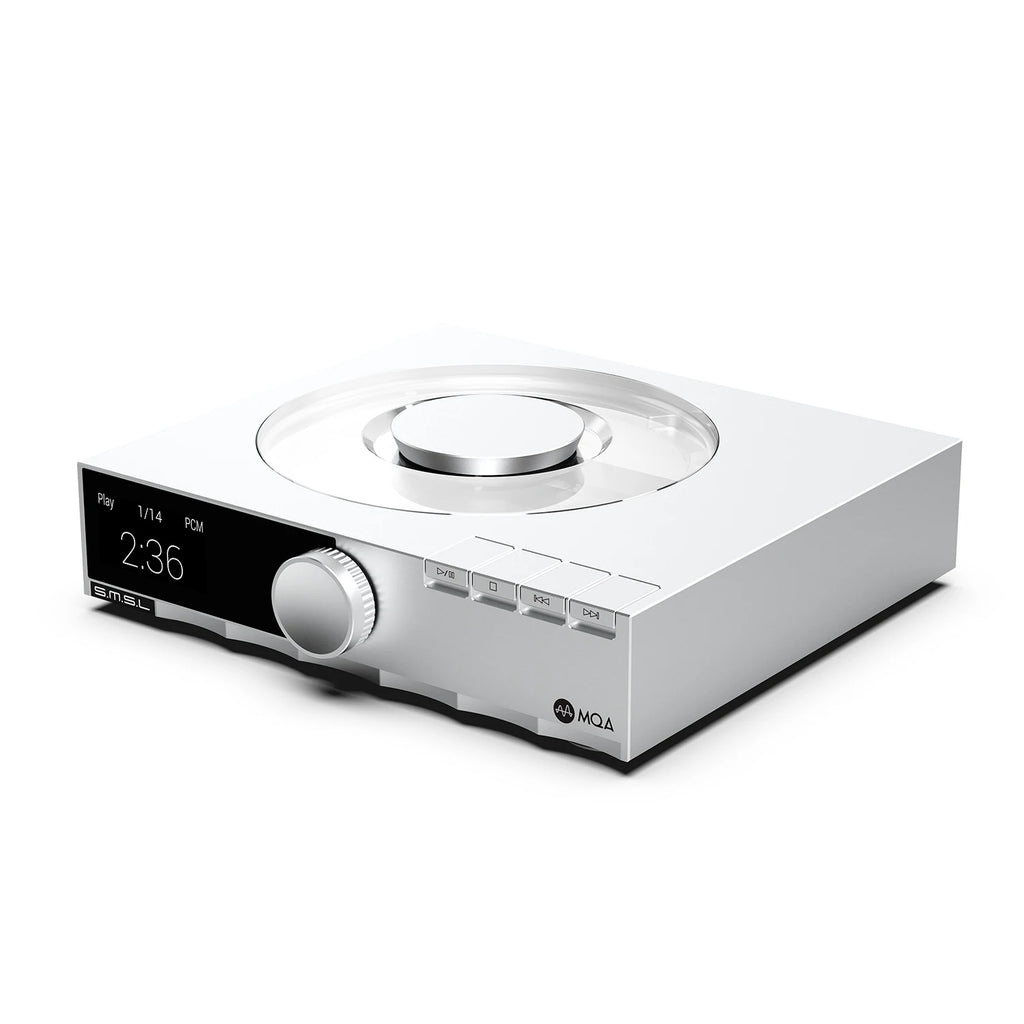

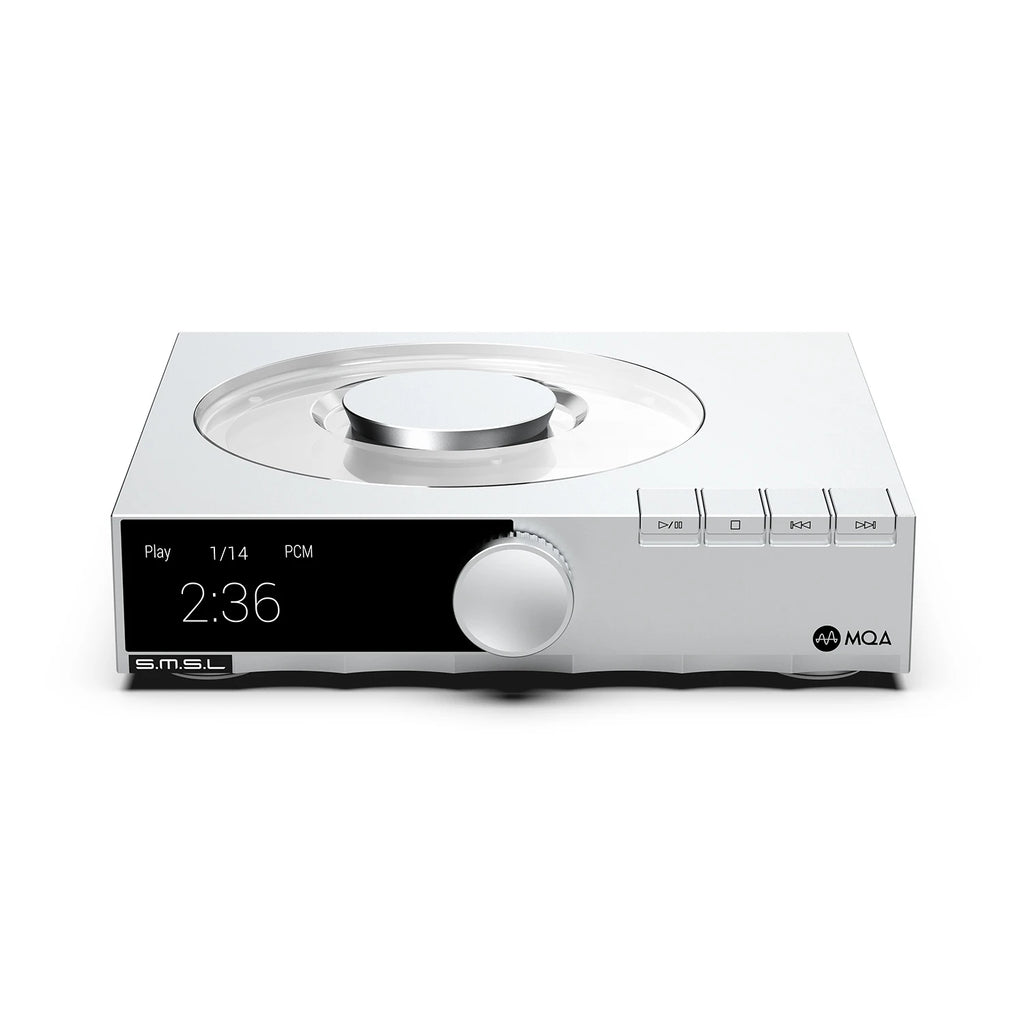

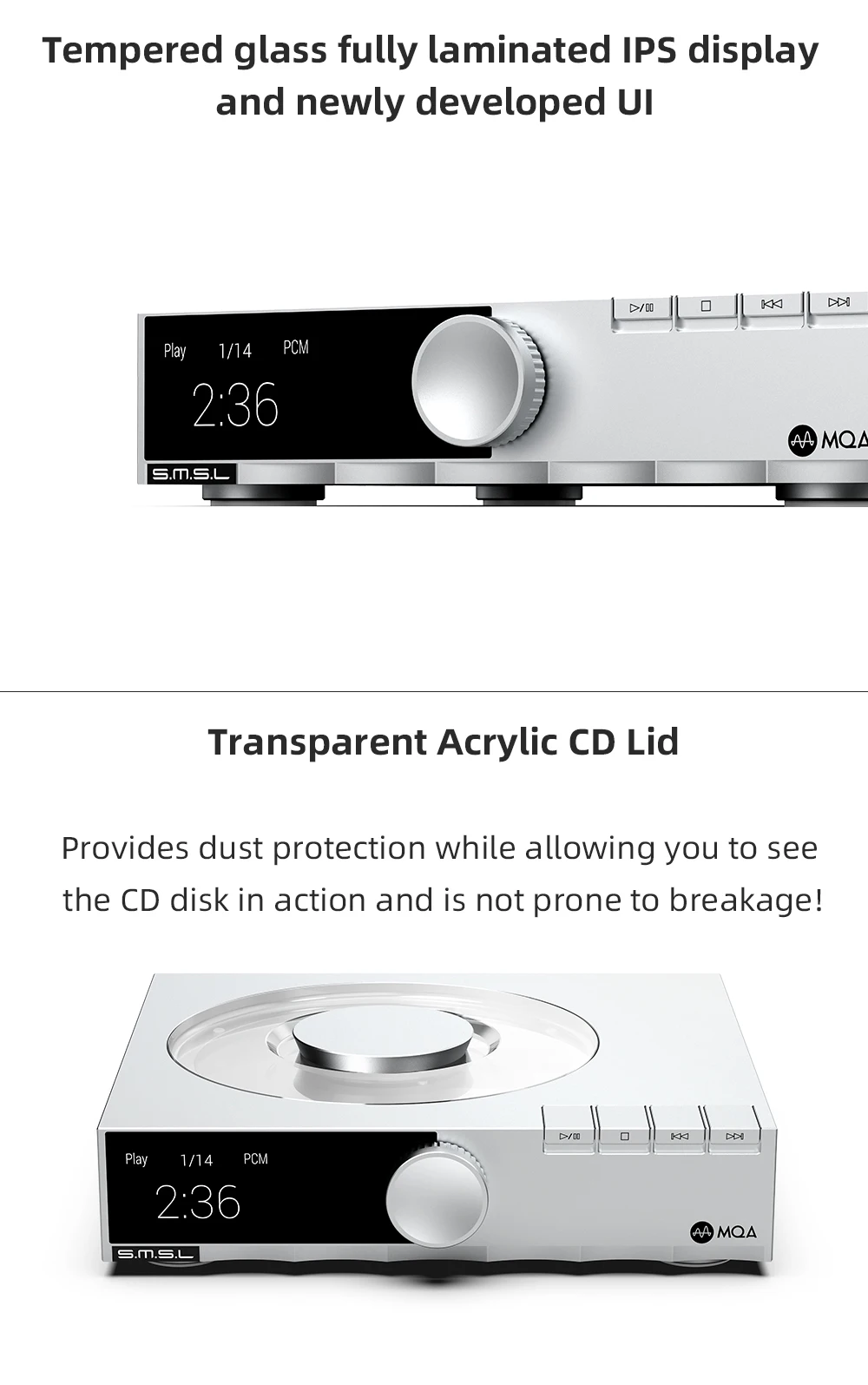

Tempered Glass Fully Laminated Display

Showcases the display in a sleek design, providing a clear view while ensuring durability and scratch resistance.

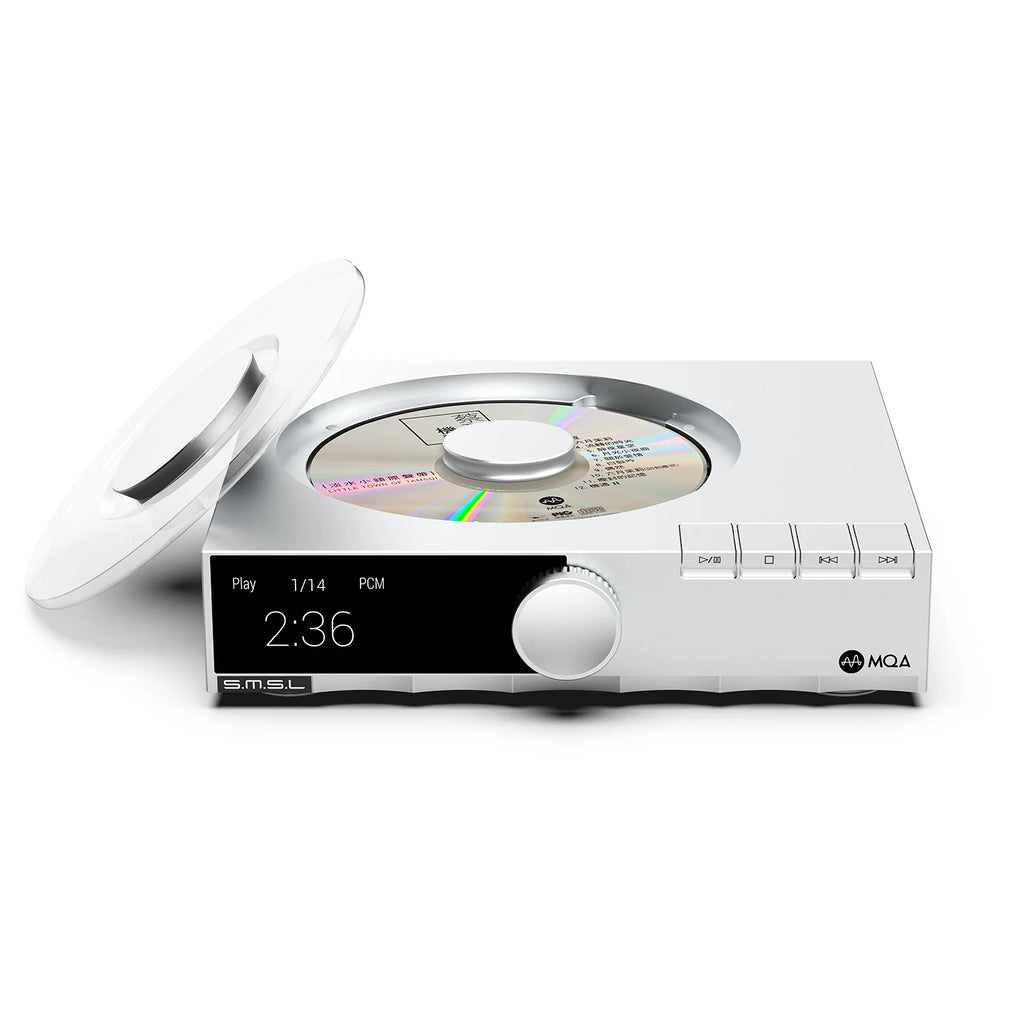

Transparent Acrylic CD Lid

Protects the CD while allowing you to watch it in action without risk of breakage.

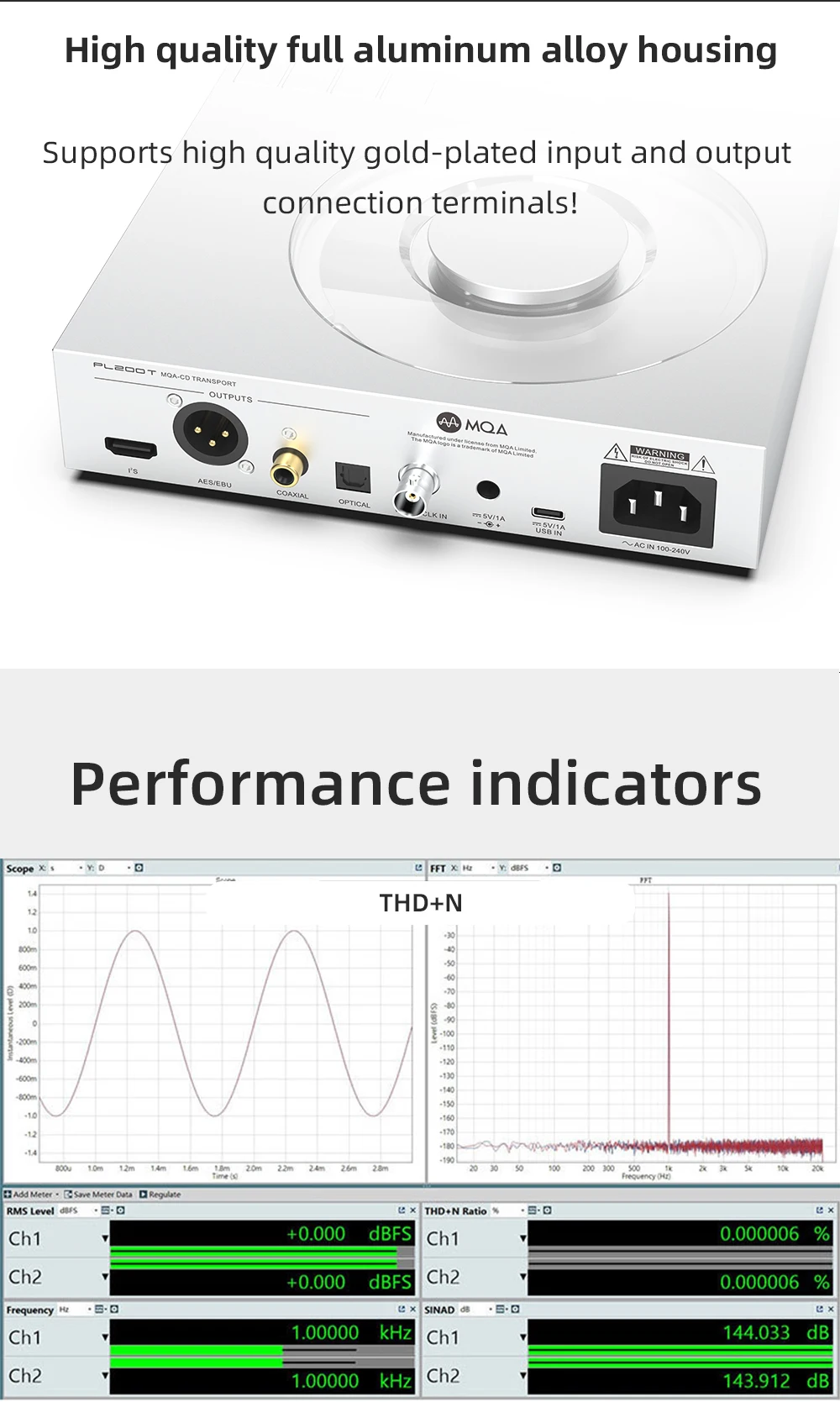

High-Quality Aluminum Alloy Housing

A robust, full aluminum alloy body that ensures durability and a premium feel.

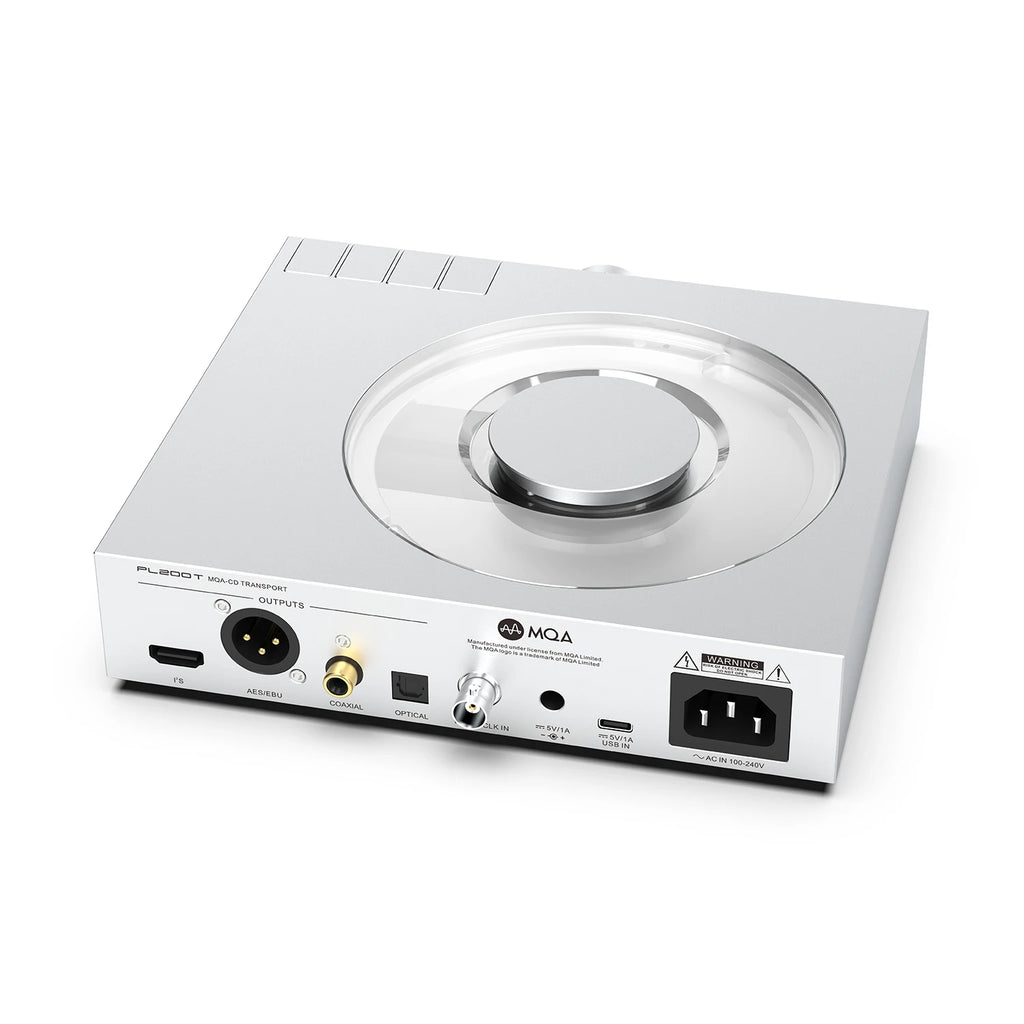

Gold-Plated Input/Output Terminals

High-quality, gold-plated input and output terminals for secure and stable connections.

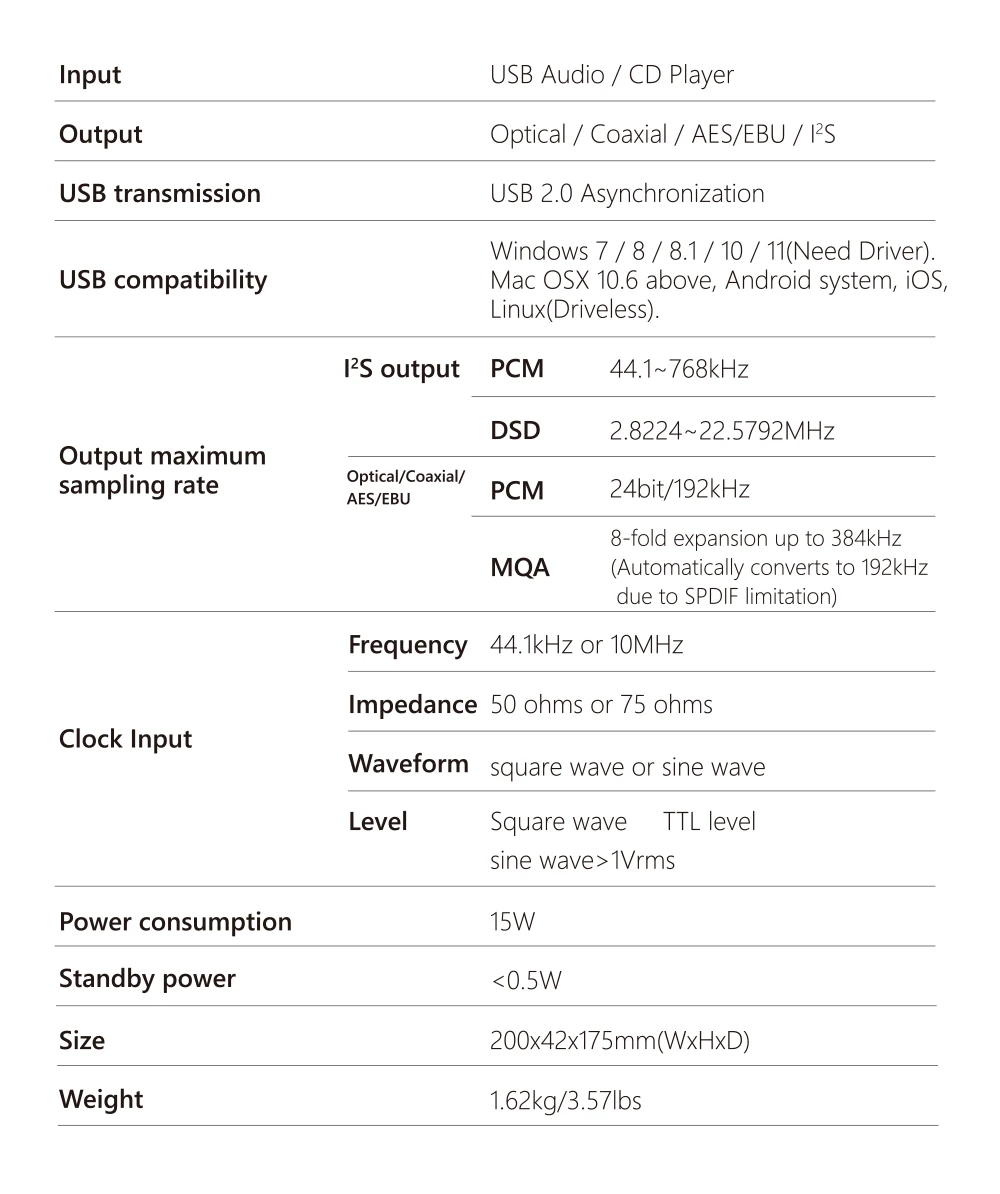

Input: USB Audio / CD Player

Output: Optical / Coaxial / AES / EBU / I2S

USB transmission: USB 2.0 Asynchronization

USB compatibility : Windows 7 / 8 / 8.1 / 10 / 11(Need Driver). Mac OSX 10.6 above, Android system, iOS, Linux(Driveless).

Output maximum sampling rate

I2S output:

PCM: 44.1~768kHz

DSD: 2.8224~22.5792MHz

Optical/Coaxial/AES/EBU:

PCM: 24bit/192kHz

MQA: 8-fold expansion up to 384kHz (Automatically converts to 192kHz due to SPDIF limitation)

Clock Input:

Frequency: 44.1kHz or 10MHz

Impedance: 50 ohms or 75 ohms

Waveform: square wave or sine wave

Level: Square wave, TTL level, sine wave>1Vrms

Power consumption: 15W

Standby power: <0.5W

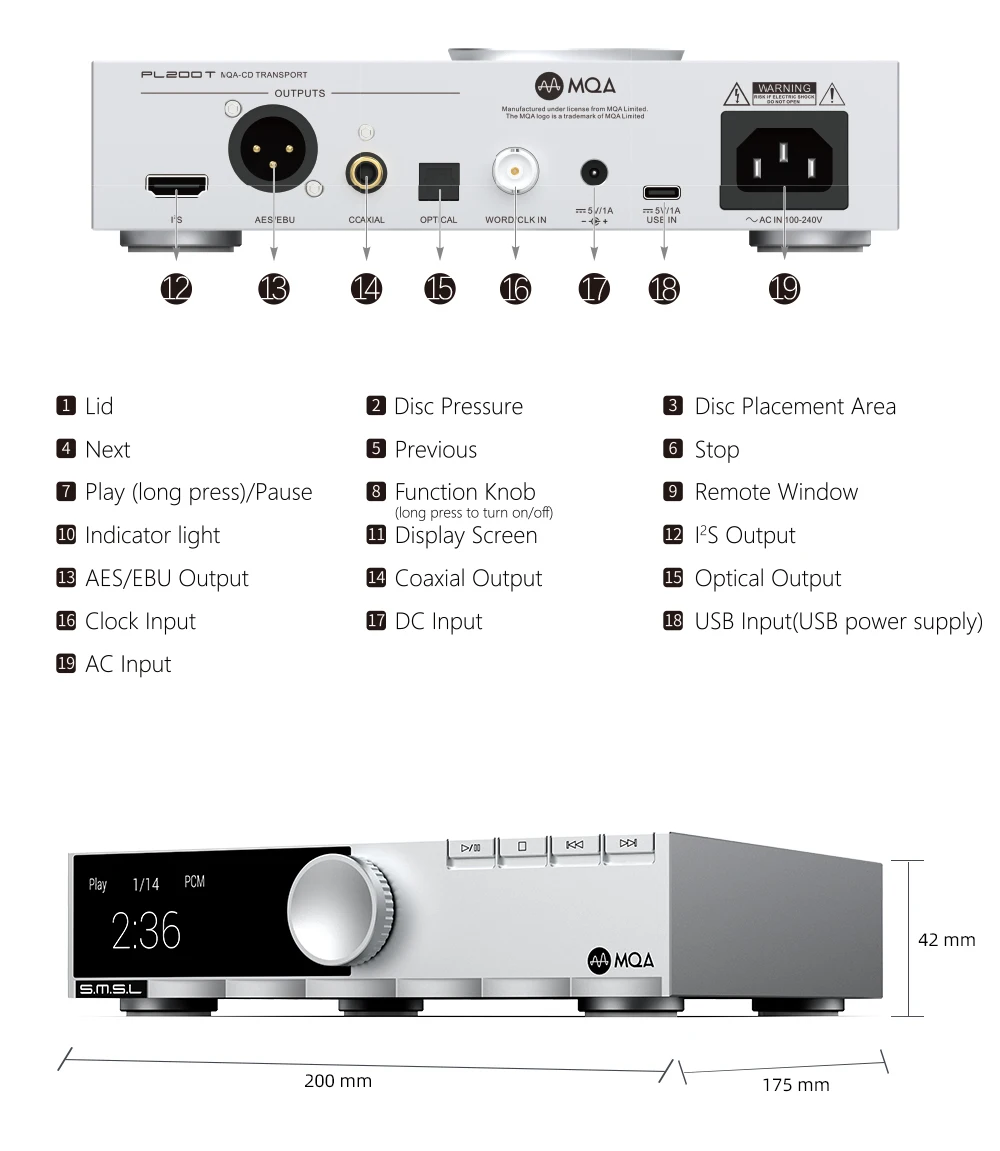

Size: 200x42x175mm(WxHxD)

Weight: 1.62kg/3.57lbs
