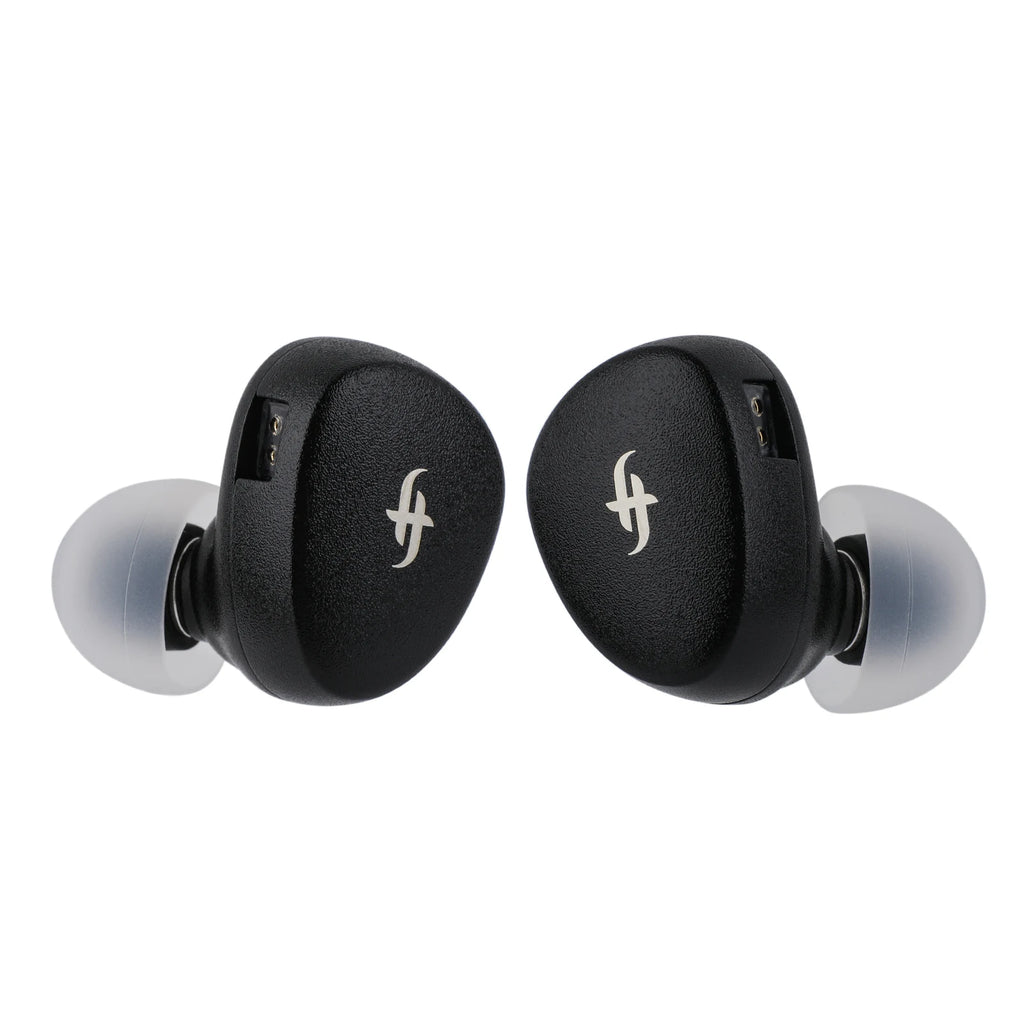

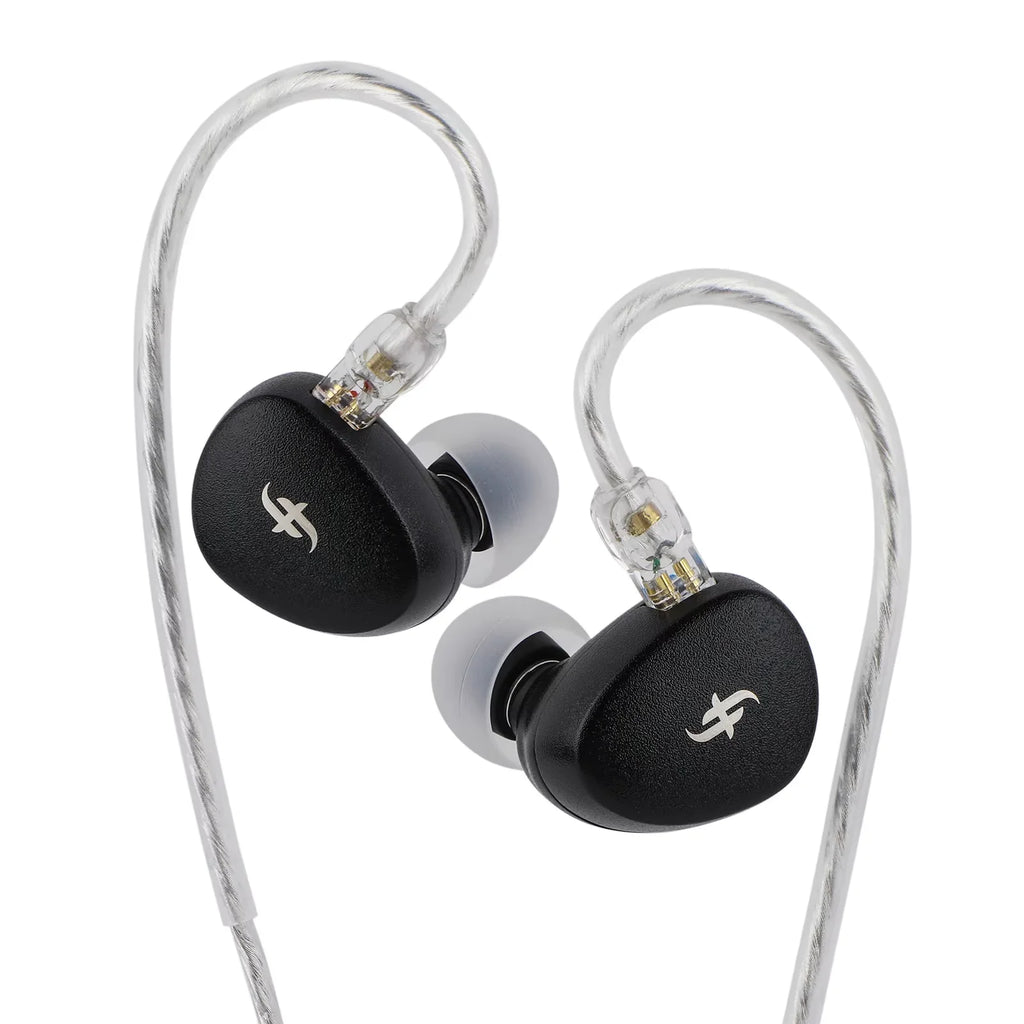

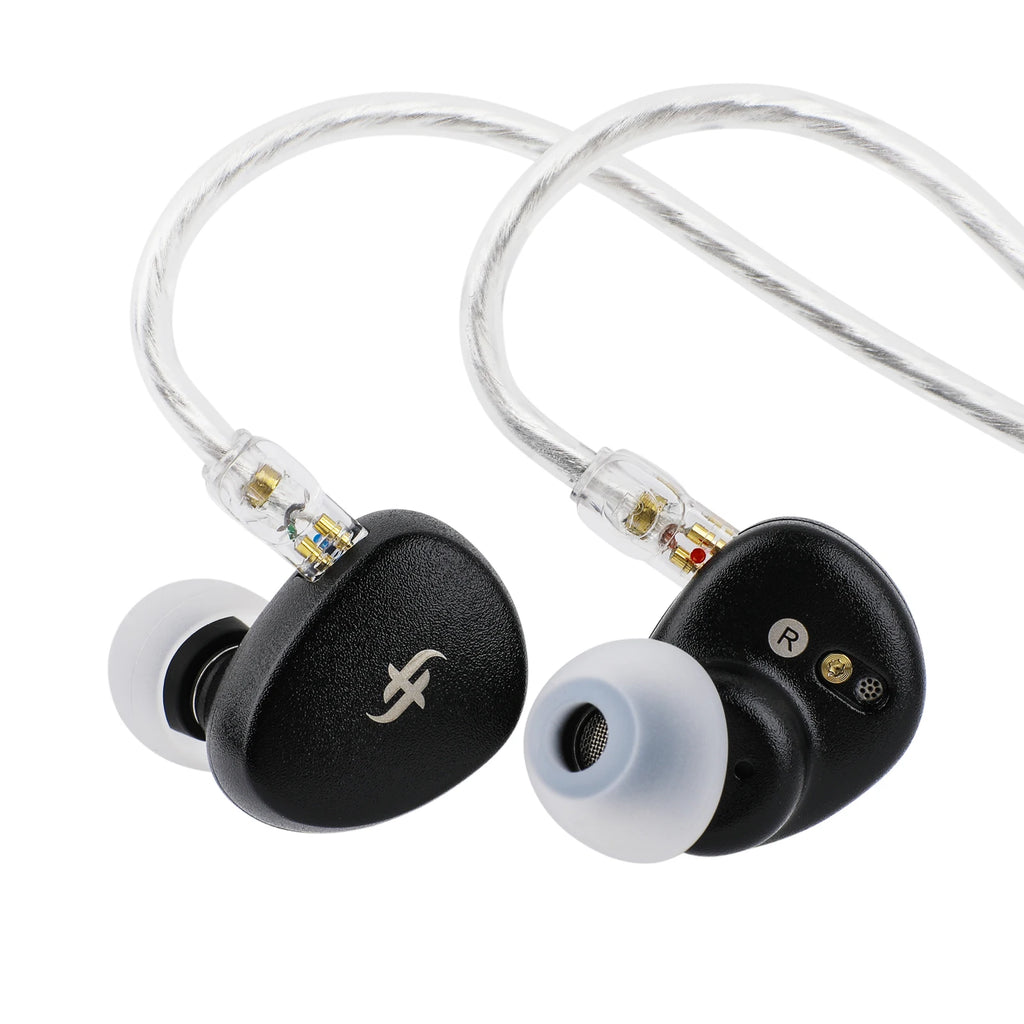

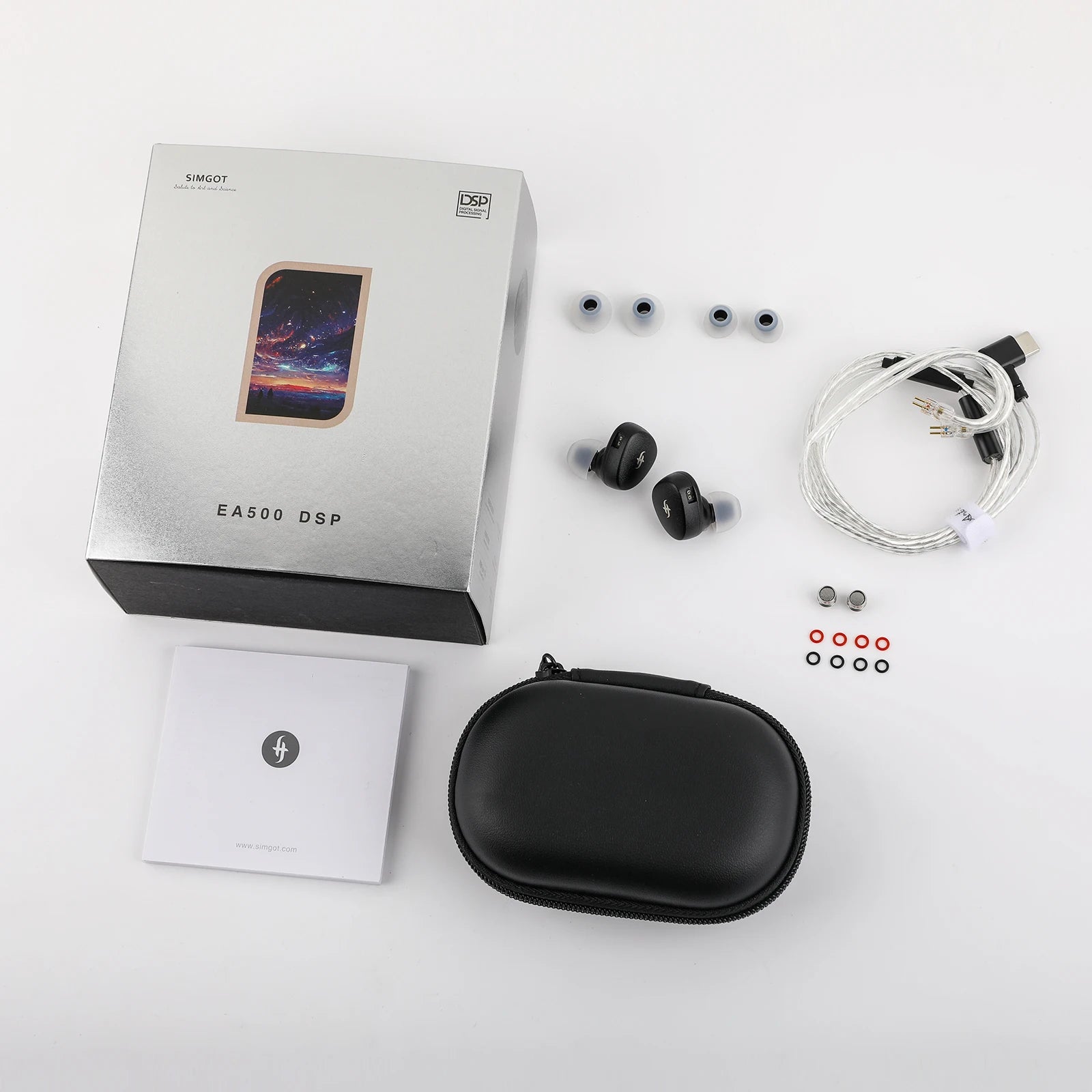

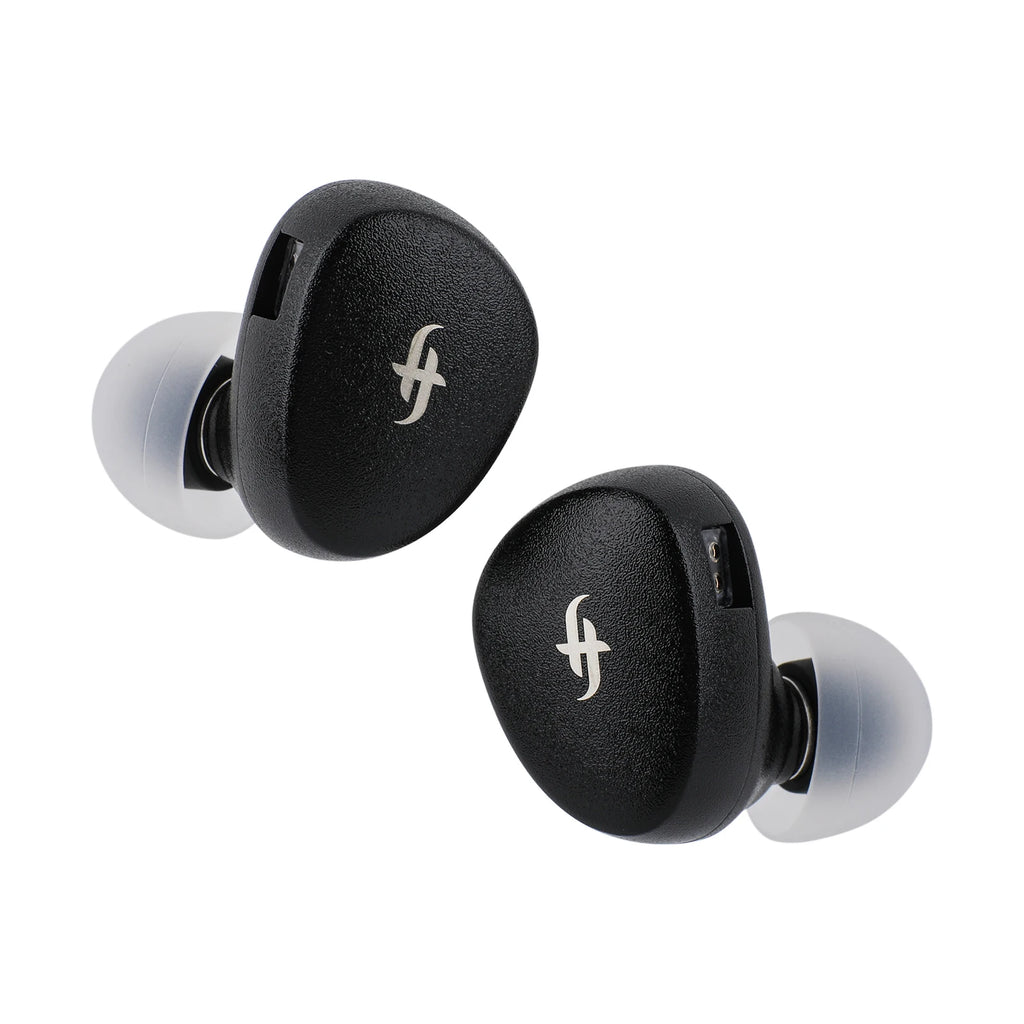

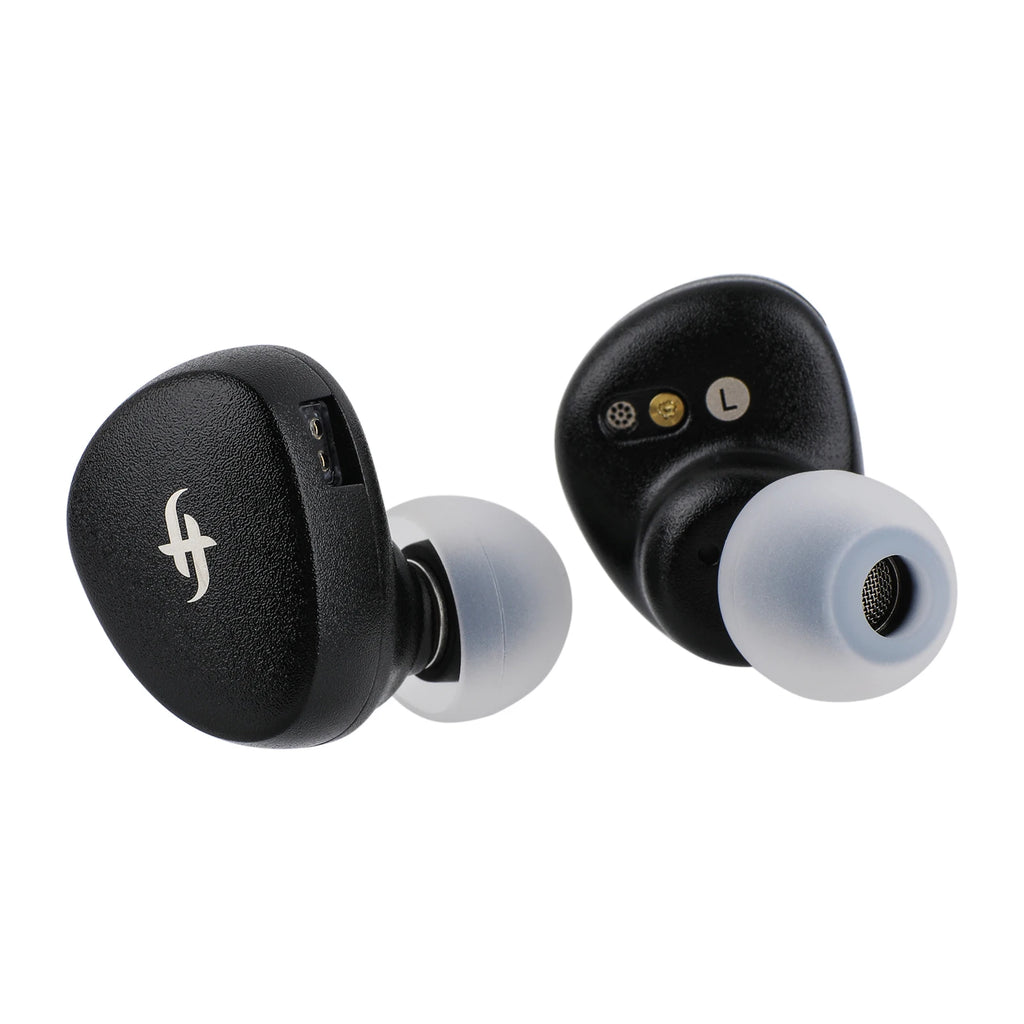

SIMGOT EA500 DSP Dual-Magnetic Dynamic IEM

SIMGOT EA500 DSP Dual-Magnetic Dual-Chamber DLC Dynamic Driver IEM Hifi Earphones with 0.78mm 2-pin Replaceable Cable Design

Dual Magnetic Circuit, Dual Chamber Driver

The EA500 DSP features a 10mm dual magnetic circuit dual chamber driver, combining internal and external magnetic paths with N52 magnets. This innovative design enhances dynamic range, transient response, and reduces distortion, delivering powerful dynamics and immersive realism.

Advanced 4th-Gen DLC Composite Diaphragm

The EA500 DSP's 4th-generation DLC composite diaphragm integrates three distinct materials, each serving a specific purpose. The DLC dome, known for its high rigidity, superior damping, and lightweight characteristics, enhances high-frequency clarity. Meanwhile, the flexible composite material used for the surround optimizes mid and low-frequency performance. This precisely engineered diaphragm achieves a balance of powerful bass, rich mids, and smooth, extended highs.

Refined Dual Magnetic Circuit Design

Through advanced simulations and testing, SIMGOT has optimized the internal-external composite dual magnetic circuit for improved performance. By using finite element simulations, SIMGOT has gathered crucial insights to refine the design, reduce prototyping cycles, and shorten development time. This ensures superior mechanical, vibrational, and acoustic properties, delivering outstanding sound quality.

Replaceable Sound Nozzles for Custom Tuning

The EA500 DSP features a replaceable sound nozzle design, allowing users to easily switch between different tuning styles by swapping the nozzle with various tuning filters. This design also extends the product's lifespan, as users can replace the filters if they become clogged over time.

H-2019 target curve(Red Nozzle):offers a versatile, balanced tuning ideal for mainstream genres, with precise positioning, accurate soundstage reproduction, and a full, stable sound. It excels across various music types and handles lower-quality recordings with ease.

SIMGOT-Golden 2023 target curve(Black Nozzle): refined from years of development and tuning experience, incorporates deep insights into user preferences and trends. It enhances clarity while maintaining balance, delivering rich, emotional vocals, and an airy, spacious high end. This curve excels in live and classical music, providing a more immersive listening experience.

Note: It’s normal for the silicone ring’s color band to be slightly exposed after attaching the replaceable sound nozzle, and the exposure may differ between left and right sides. The silicone ring ensures a proper seal, preventing air leakage that would affect bass performance. This is part of the design and not a quality issue. Please use with confidence.

Hardened Sandblasted Anodized Alloy Casing

The EA500 DSP features a rugged alloy casing crafted using a hardened sandblasted anodization process, offering a high-quality texture and a scratch-resistant finish. Unlike the mirror plating of the EA500, the sandblasted finish provides enhanced durability and resistance to wear. Internally, the casing's subtle uneven surface further suppresses standing waves, improving acoustic performance.

Note: The alloy casting process may leave minor molding marks or cosmetic imperfections, which do not affect the product's performance. Returns or exchanges based on appearance are not supported.

Compact, Angled Type-C with Separate DAC for Mobile Gaming

The EA500 DSP features a separated Type-C and DAC design, with a compact, angled Type-C connector that minimizes interference during mobile gaming. The DAC chip, positioned away from the hand, reduces heat buildup, ensuring a comfortable experience. This design also mitigates RF interference, enhancing sound purity.

Hi-Fi Sound Quality with Professional DAC and Low Interference

The EA500 DSP uses a high-performance DAC, placed away from the Type-C connector to reduce RF interference. Metal shielding further blocks noise, while DSP algorithms and high-precision EO optimize the soundstage. This design minimizes distortion and background noise, ensuring clear, dynamic Hi-Fi sound.

Clear Calls with Goertek High-Sensitivity Microphone

The EA500 DSP features a high-sensitivity, interference-resistant silicon microphone from Goertek. Combined with an optimized microphone circuit and MIC algorithm in the DAC chip, it ensures precise voice capture and effective noise reduction, even in noisy gaming or calling environments.

Ergonomic Design for Comfortable, Secure Fit

The EA500 series combines precision craftsmanship and ergonomic design, tailored to fit the human ear. With careful study of 3D ear data, its lightweight, over-ear design ensures a secure fit while minimizing the stethoscope effect, allowing you to enjoy music without worrying about the earbuds slipping.

Specifications

Brand: SIMGOT

Model: EA500 DSP

Driver: 10mm Dual-Magnetic Dual-Chamber Structure

Diaphragm Material: 4th Gen DLC (Diamond-Like Carbon) Composite

Impedance: 16Ω ±15% (@1kHz)

Sensitivity: 123dB/Vrms (@1kHz, Red Nozzle); 124dB/Vrms (@1kHz, Black Nozzle)

Frequency Response: 10Hz-50kHz

Effective Frequency Response: 20Hz-20kHz

Connector: 0.78mm 2-pin

Cable: High-Purity Oxygen-Free Copper with Silver Plating

Audio Interface: Type-C
