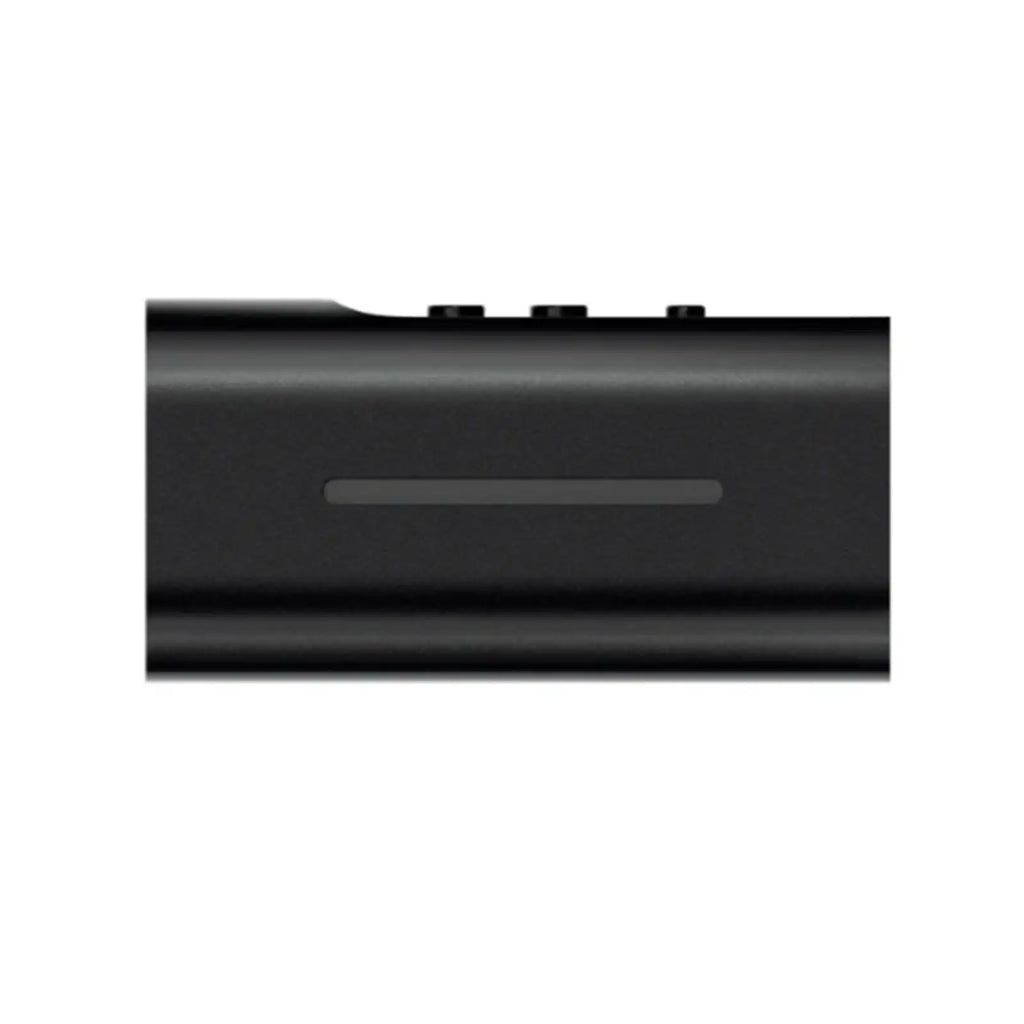

LETSHUOER DT03 Dual ES9219C USB

LETSHUOER DT03 Headphone Amplifier Dual ES9219C Chips, Supports 32bit/384kHz, USB-C Input Portable High-Resolution DAC/AMP

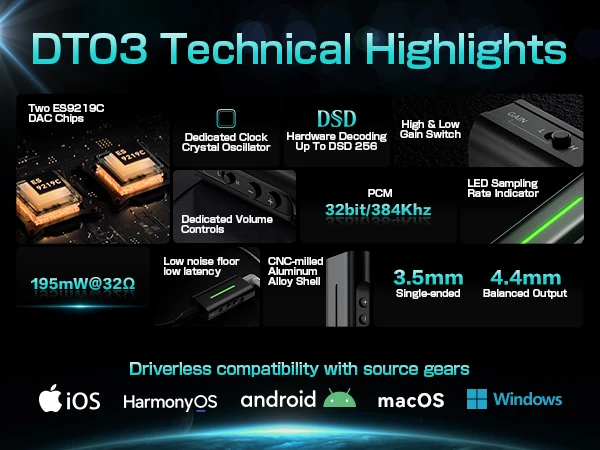

Dual ES9219C DAC Chips

The LETSHUOER DT03 is equipped with dual ES9219C DAC chips, offering an impressive signal-to-noise ratio of 119dB and a distortion rate as low as 0.0006% on the 4.4mm balanced output. Meticulously tuned by our engineers, the DT03 delivers impeccable sound quality, highlighting the intricate details and layering of your music.With its dedicated high-precision clock crystal oscillator module, the DT03 significantly reduces jitter by bypassing the built-in USB clock. This ensures a purer signal output, resulting in cleaner sound reproduction when combined with the dual DAC chips.

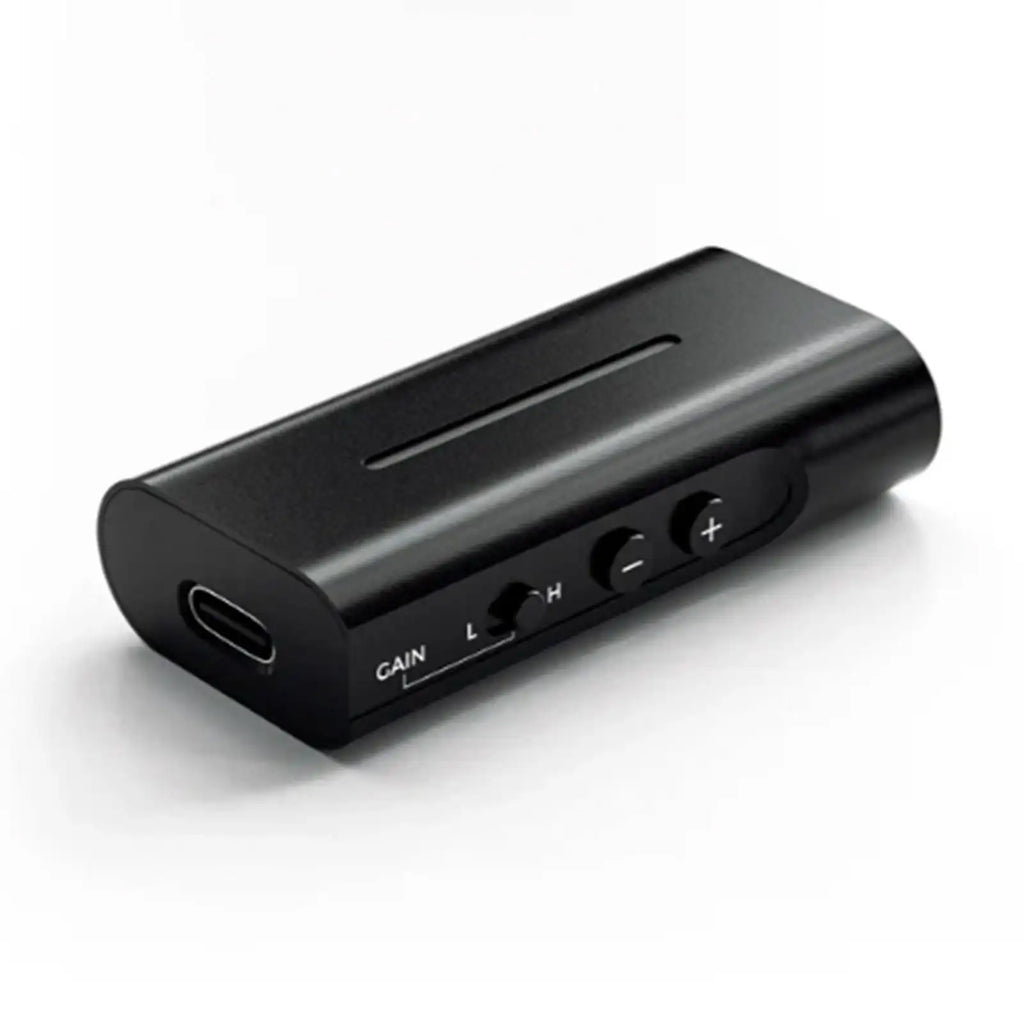

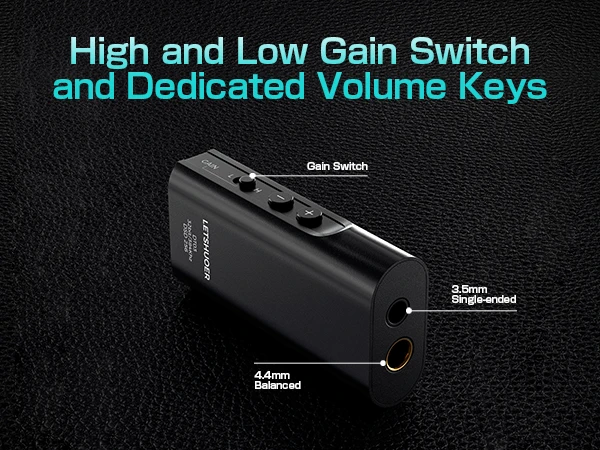

Mode Switch Between Low and High Gain with Dedicated Volume Controls

Designed for versatility, the DT03 features a low and high gain switch, adapting to various transducers with different impedance and sensitivity. The unit also includes a dedicated volume adjustment button for easy control, making it perfect for everyday use.

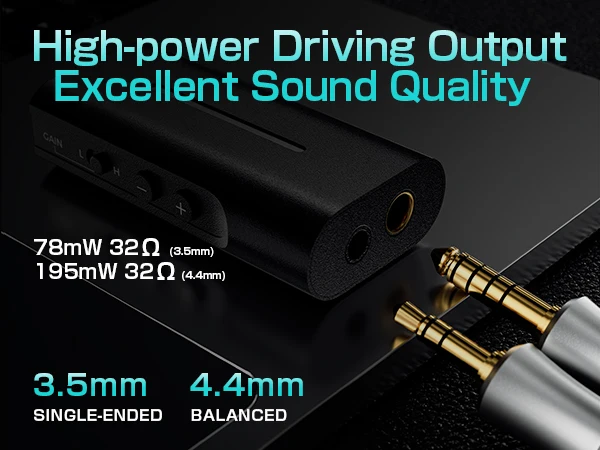

3.5mm and 4.4mm Dual Output Interfaces

The DT03 offers both single-ended 3.5mm and balanced 4.4mm headphone outputs. The single-ended output power is 78mW (32Ω load), while the balanced output power is 195mW (32Ω load). This high-power driving output enhances transient speed, dynamics, power output headroom, and accuracy, delivering a robust and powerful sound performance with captivating musical details.

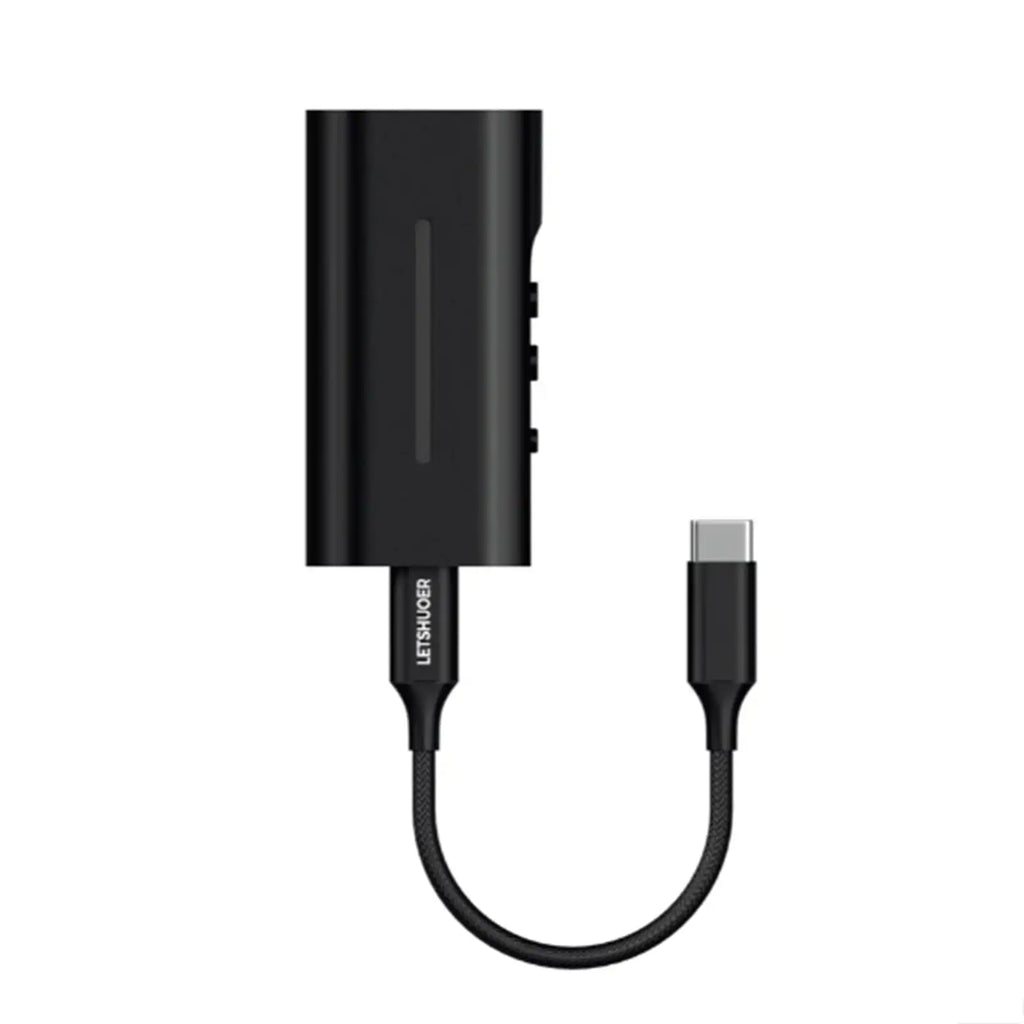

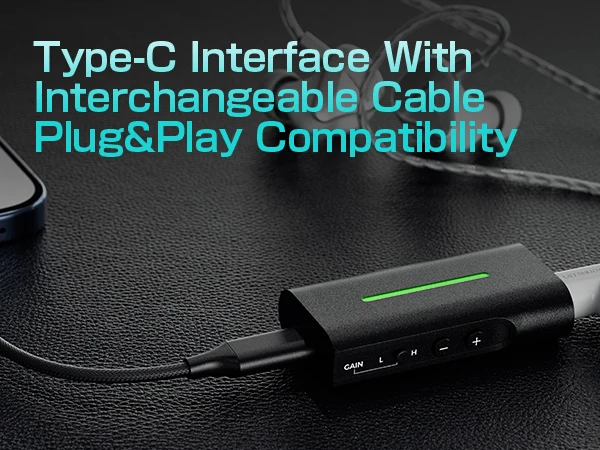

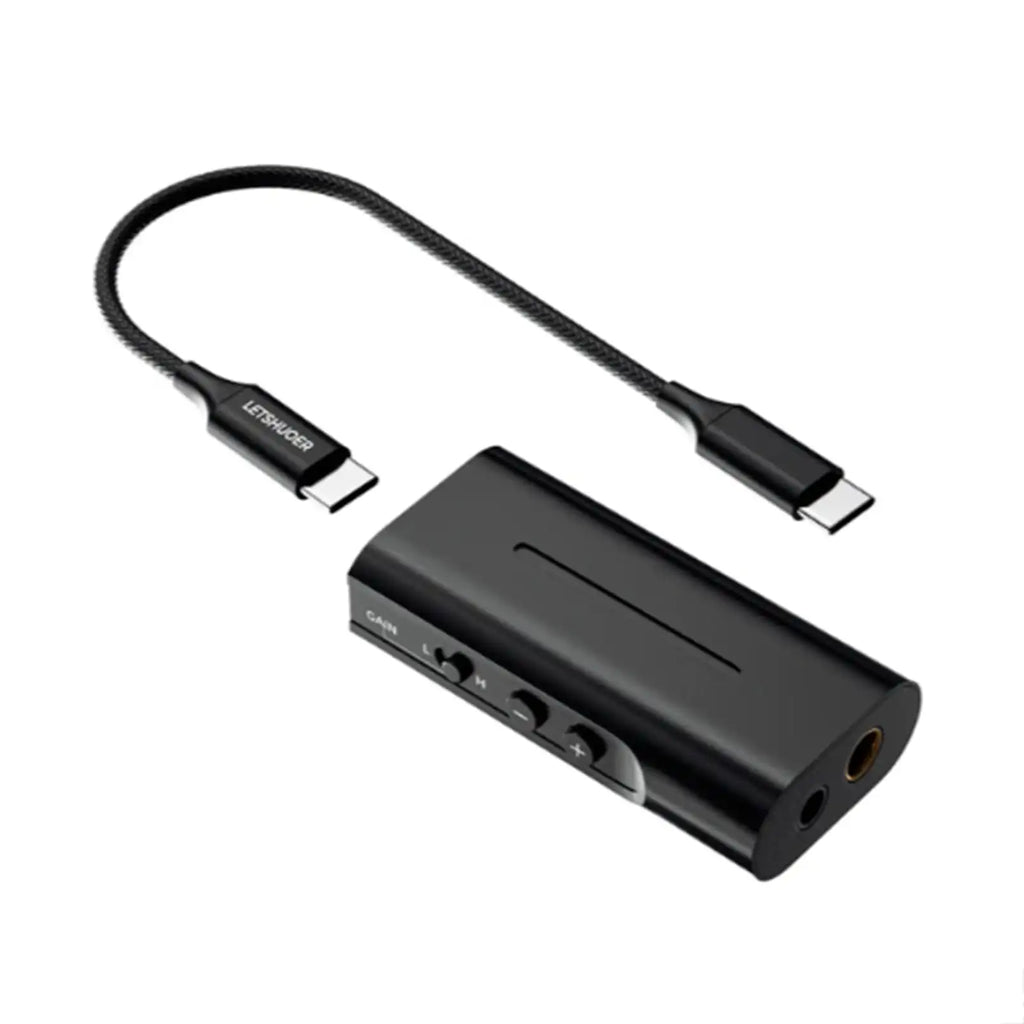

Type-C Interface with Interchangeable Cable Design

Featuring a Type-C female connector, the DT03 is compatible with any USB-C cable, greatly enhancing its compatibility with source devices. The included high-quality cable ensures signal integrity. The DT03 is plug-and-play with most Android, iOS, Windows, and MacOS devices, requiring no special drivers.

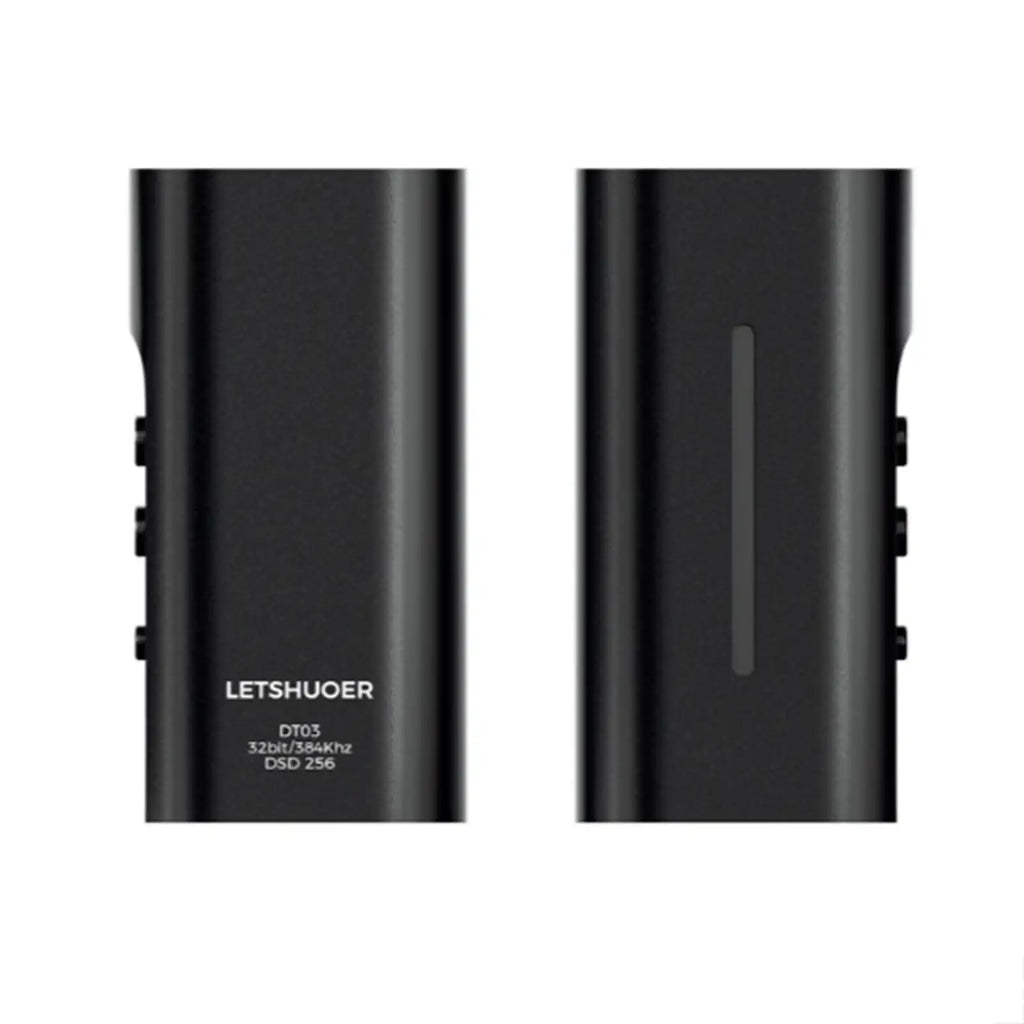

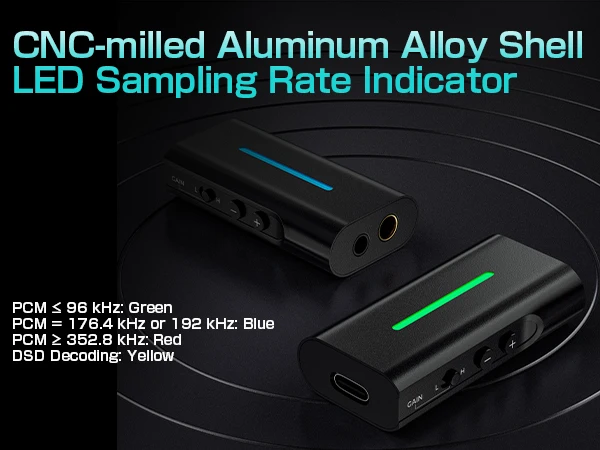

CNC Milled Aluminum Shell with RGB LED Sampling Rate Indicator

The DT03 combines outstanding sound quality with exquisite industrial design. Its CNC-milled aluminum alloy shell is smooth to the touch and effectively blocks noise and interference. Inside, an injection-molded plastic bracket stabilizes the internal structure, reducing the risk of damage. The RGB LED sampling rate indicator displays different colors based on the audio source and bit rate.

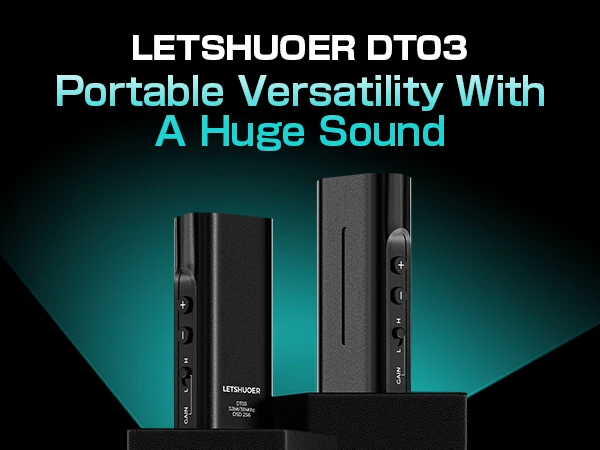

Portable Versatility with a Huge Sound

As LETSHUOER’s third entry into the portable dongle DAC lineup, the DT03 meets the increasing demand for high-performance audio on the go. It strikes a balance between appearance and sound quality, pushing the envelope in a compact package.

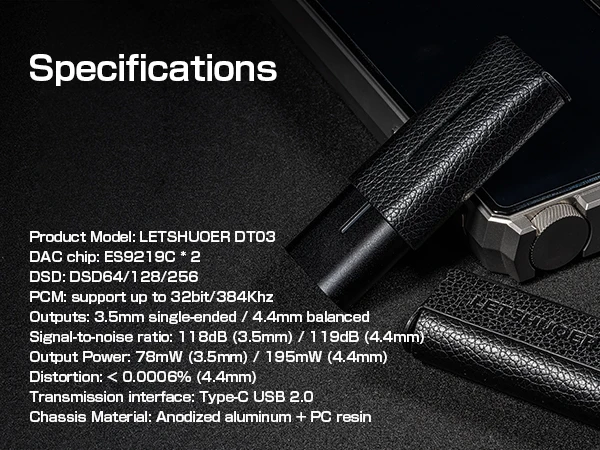

Specifications:

Product Model: LETSHUOER DT03

DAC Chip: Dual ES9219C

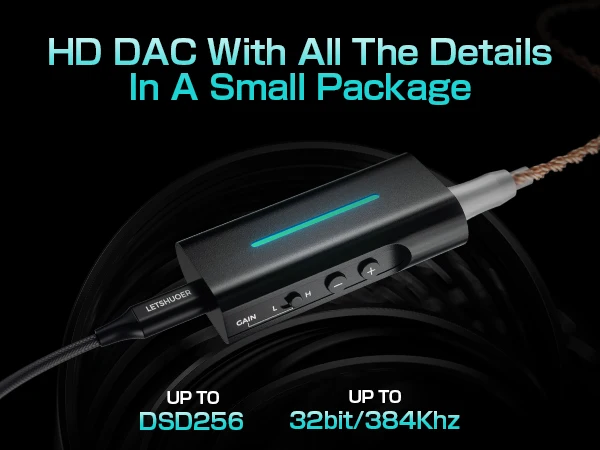

DSD Support: DSD64/128/256

PCM Support: Up to 32bit/384kHz

Outputs: 3.5mm single-ended / 4.4mm balanced

Signal-to-Noise Ratio: 118dB (3.5mm) / 119dB (4.4mm)

Output Power: 78mW (3.5mm) / 195mW (4.4mm)

Distortion: <0.0006% (32Ω)

Transmission Interface: Type-C USB 2.0

Chassis Material: Anodized aluminum + PC resin
