ZiiGaat Horizon 1DD+2BA+2 Planar Tribrid IEM

ZiiGaat Horizon 1DD + 2BA + 2 Planar Tribrid IEM Earphones Natural Tonal Balance with Custom Interchangeable Cable

Features

Soundstage that Brings Your Music to Life

Tribrid Configuration

Buttery Treble Extension

Natural Tonal Balance

Handcrafted Quality

Custom Interchangeable Cable

Soundstage that Brings Your Music to Life

The Horizon was developed to provide an effortless musical experience. The Horizon delivers an extreme naturalness and life-likeness in your music thanks to a smooth upper treble extension. Utilizing two planar drivers to effectively extend the upper trebles to 40kHz, the Horizon allows you to discover a new realism in your audio.

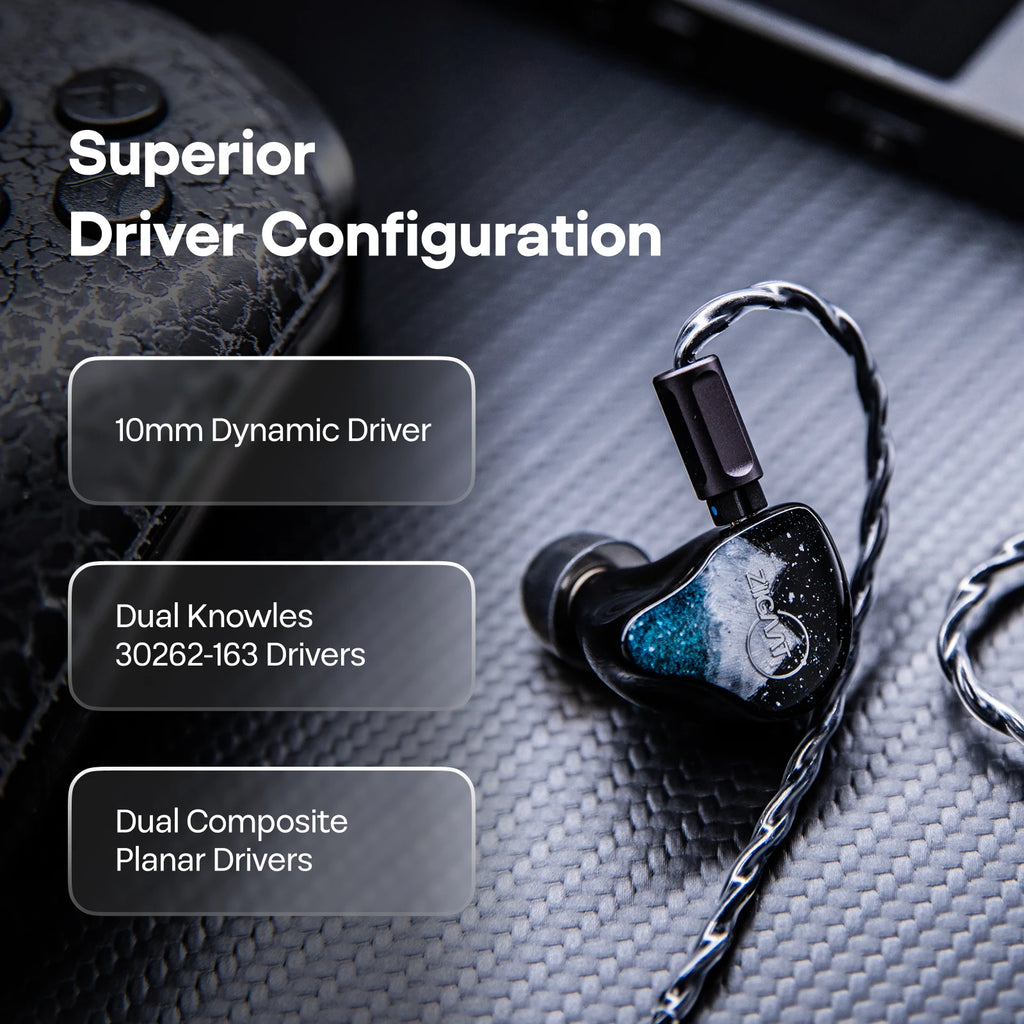

Tribrid Configuration

The Horizon utilizes a single 10mm biodynamic driver to power a thumpy and engaging bass response. The midrange feels smooth and has an analog texture thanks to two custom ported Knowles 30262-163 balanced armature drivers. A dual custom composite planar drivers are dedicated to the treble and are specifically designed to enhance the 8 to 40kHZ ultra-treble range.

Buttery Treble Extension

Previous attempts by the IEM industry to enhance the treble response has always resulted in harshness and peakyness in the treble range. By designing custom planar drivers for the upper treble, we have achieved an almost completely linear treble extension that does not deviate more than 4dB across the entire 10 to 40kHz frequency range. This means you can appreciate the expansive soundstage and air that brings your music to life, without any unnatural shrillness or harshness.

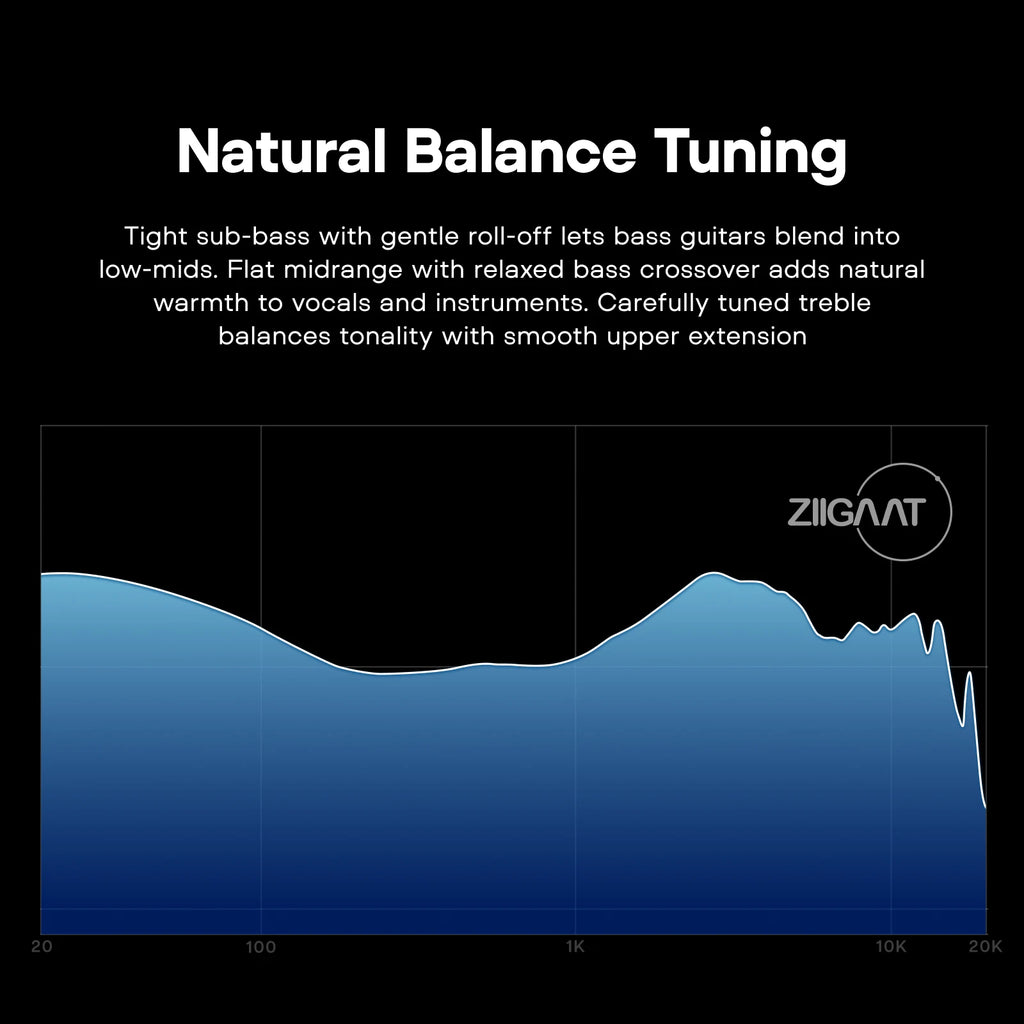

Natural Tonal Balance

The Horizon has been tuned to feel natural and comfortable. Compared to our other models, the Horizon features a smoother transition across the entire frequency spectrum to provide a more music experience. The sub-bass kicks are tight, but the bass roll-off is more lenient, allowing more bass-guitar presence to tie into the low-mids. The midrange is flat, but thanks to a more relaxed crossover with the bass, instruments and vocals retain a little more warmth. The treble is carefully calculated to balance the entire tonal curvature, with the upper trebles being smoother to accommodate the treble extension.

Handcrafted Quality

Each Horizon unit is handcrafted. Beginning with a 3D-printed resin shell which uses imported medical-grade resin, the shell is durable and lightweight for extended studio usage. Each driver is hand-tested and paired prior to assembly to ensure perfect channel matching. Horizon units are then individually tested prior to finishing and polishing to ensure the highest degree of quality. Every faceplate is hand poured and decorated, providing a boutique look and feel.

Custom Interchangeable Cable

The Horizon comes standard with an interchangeable 2-pin 0.78mm connector cable. The cable is constructed from ultra-pure grade silver-plated oxygen-free copper. Premium silver-plated copper wires ensure noise-free signal transmission for the highest quality of sound. The interchangeable cable design also optimizesthe longevity of the IEM and allows customizability in your wearing experience.

Product Technical Information

ZiiGaat Horizon: 1DD+2BA+2Planar

Driver: 10mm bio-diaphragm + Knowles 30262-163 + custom composite dual planar drivers

Sensitivity: 102dB

THD: 0.63%

Impedance: 9Ω

Frequency Response: 20Hz-36kHz
