FangSound Silenos R2R/Preamp

FangSound Silenos Integrated DAC/Headphone Amp/Preamp with High-Power Output&Precision R2R Decoding&Compact Integrated Design

Key Features

True-Balanced High-Power Output

Complementary R2R Decoding Architecture

Compact Desktop Design (18 × 16 × 4.5 cm)

Comprehensive I/O for Versatile Integration

Dual GaN Switching Power Supply (100W Total)

CNC Precision-Milled Aluminum Chassis

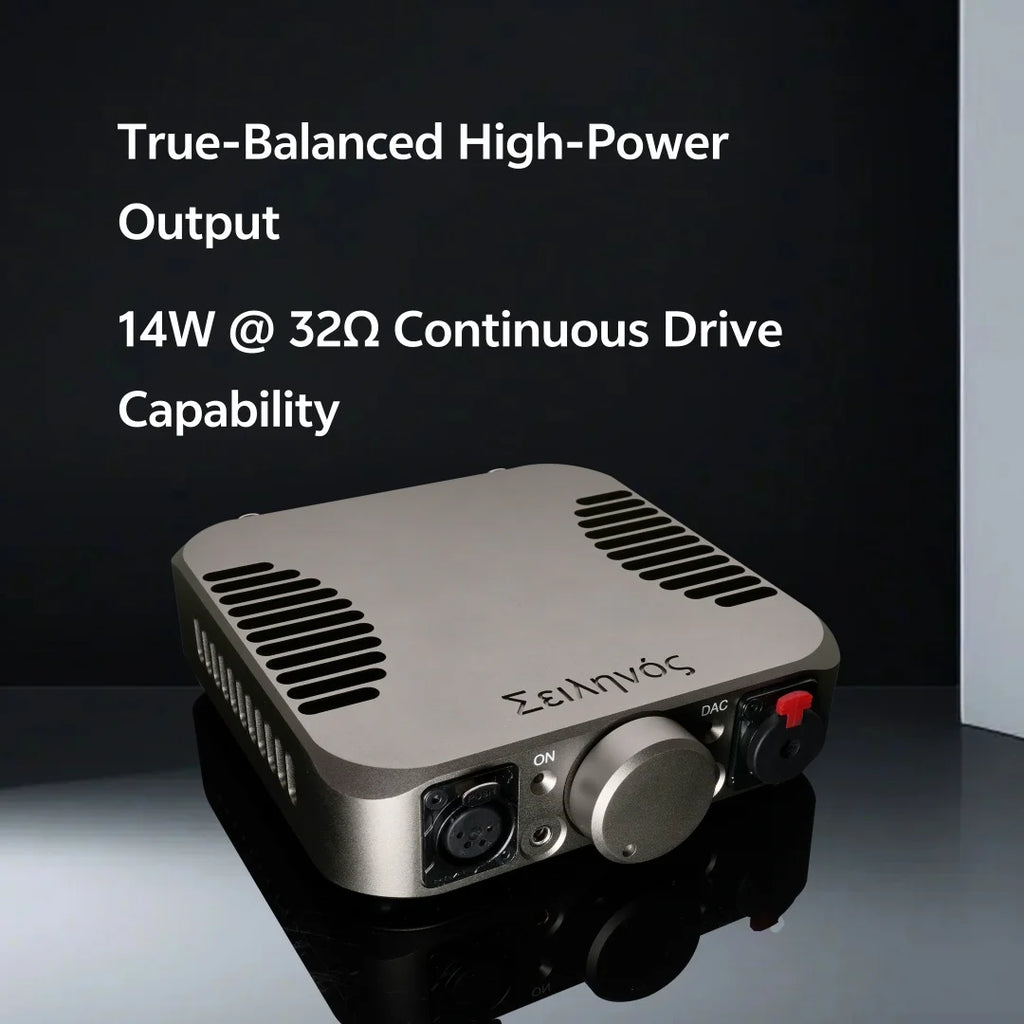

True-Balanced High-Power Output

Silenos delivers up to 14W @ 32Ω continuous balanced power, not just peak values. This ensures it can effortlessly drive even the most demanding headphones, including high-impedance dynamics and planar magnetics, while maintaining excellent dynamic control and energy.

Complementary R2R Decoding Architecture

Featuring 192 precision resistors in a complementary R2R array, Silenos achieves exceptional circuit balance and error suppression. Supporting PCM up to 32bit / 768kHz, it produces an analog-like, natural sound with enhanced detail and accuracy.

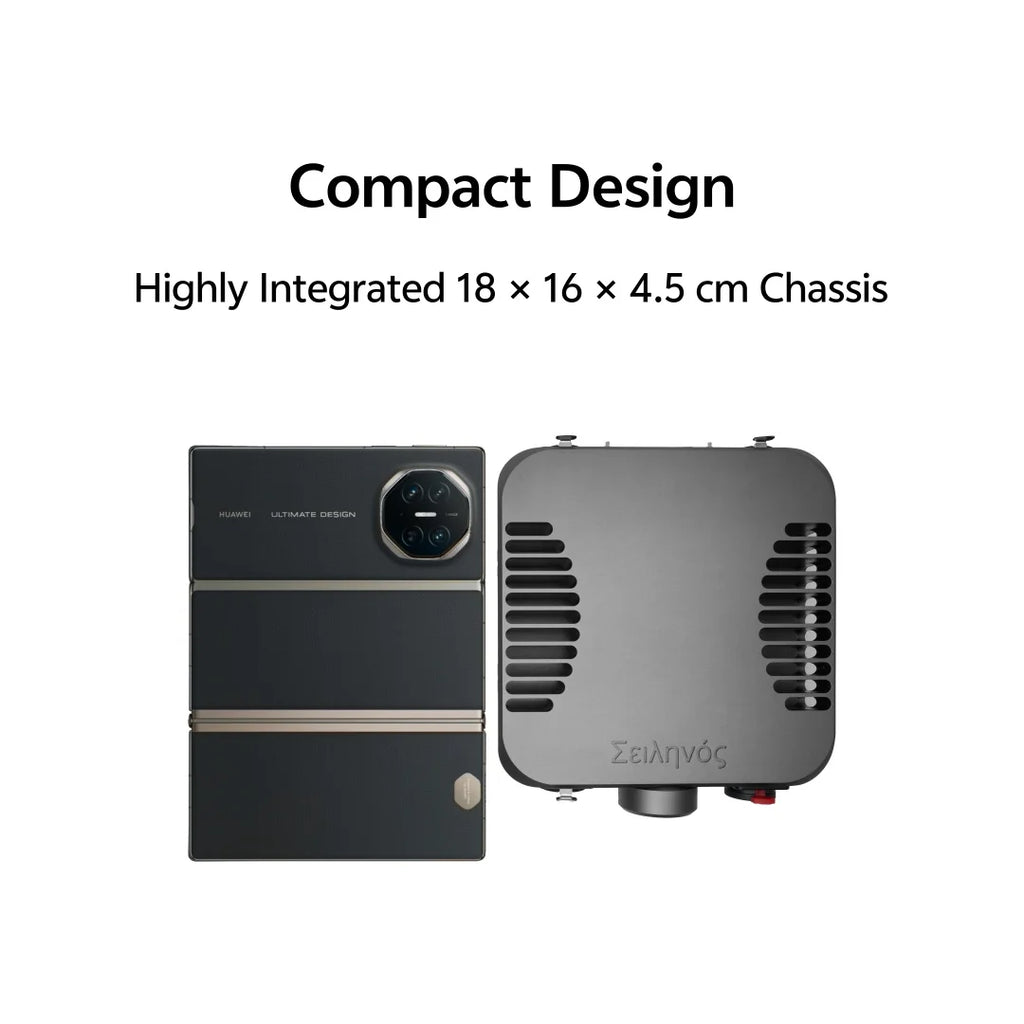

Compact and Space-Efficient Design

Measuring only 18 × 16 × 4.5 cm, Silenos combines high output with a compact footprint. Ideal for desktop HiFi systems, studios, and personal listening spaces, it offers maximum power and versatility in a portable, space-saving form.

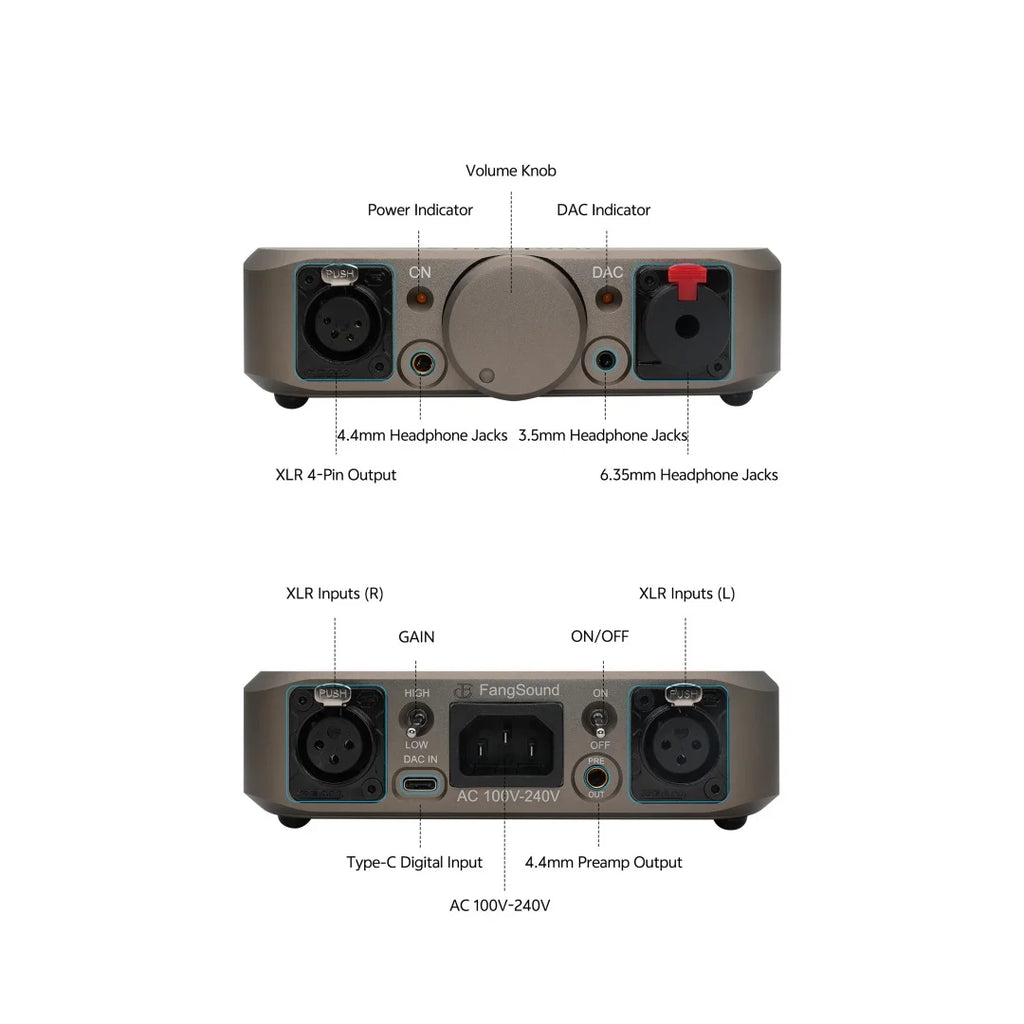

Comprehensive I/O Connectivity

Equipped with XLR, 4.4mm, 6.35mm, and 3.5mm headphone outputs, along with balanced preamp output, Type-C digital input, and XLR analog input, Silenos integrates seamlessly with headphones, active speakers, turntables, and CD players.

Dual GaN Power Supply Design

The dual GaN switching power modules provide up to 100W total output, offering cleaner, faster, and more stable performance than traditional silicon-based designs. This ensures low noise, high efficiency, and reliable operation even under heavy loads.

CNC Precision-Milled Aluminum Chassis

Crafted from a solid block of aluminum with anodized sandblasting, Silenos provides structural strength, EMI shielding, and efficient heat dissipation. This design ensures long-term stability, durability, and superior sonic purity.

Headphone Amplifier & Preamp Section

Power Output:

14W @ 32Ω, 1W @ 600Ω (10% THD+N, 1kHz)

11W @ 32Ω, 0.6W @ 600Ω (1% THD+N, 1kHz)

Output Voltage:

25Vrms / 70Vpp (10% THD+N, 1kHz)

19Vrms / 54Vpp (1% THD+N, 1kHz)

Amplification: Class AB

Dynamic Range: 106dB

SNR: 106dB

THD+N: 0.002% (16Vrms, 1kHz)

Gain: Two-level (High / Low)

Outputs: XLR 4-pin, 4.4mm balanced, 6.35mm, 3.5mm

Preamp Output: 4.4mm balanced

R2R DAC Section

Format Support: PCM up to 32bit / 768kHz

Architecture: Complementary R2R with oversampling

Output Voltage: 4Vrms

Dynamic Range: 84dB

SNR: 84dB

THD+N: <0.1%

Digital Input: 1 × Type-C

Power & Build

Power Supply: Dual GaN switching modules, up to 100W

Chassis: CNC precision-milled aluminum

Dimensions: 18 × 16 × 4.5 cm

Weight: 1.1kg

Origin: Shenzhen, China

Packaging Includes:

Main unit ×1, Power cable ×1, Type-C to Type-C cable ×1, Type-C to USB-A cable ×1, User manual ×1
